Decking and cladding screws 4,0–5,0 mm, QUADROFIX ANTIK C2

NEW INOX C2

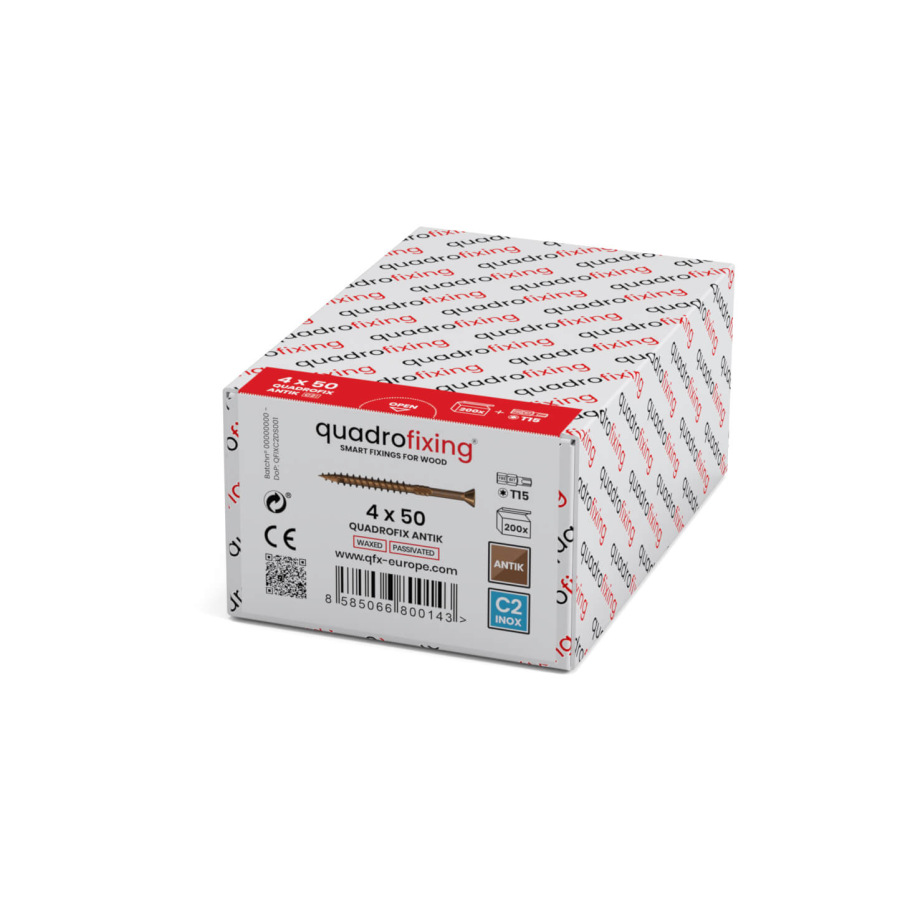

Size and packaging:
4x50 mm (200+bit)864
4,5x50 mm (200+bit)
4,5x60 mm (200+bit)
5x60 mm (200+bit)
5x70 mm (200+bit)
Producer: quadrofixing
Warranty: 24 months
Code: QFXANTIKC2
EAN: 858506801539
Availability: in stock 864 Pkg.
14.55 excl. VAT
17.90 Pkg.
Watchdog Add to wishlist Share

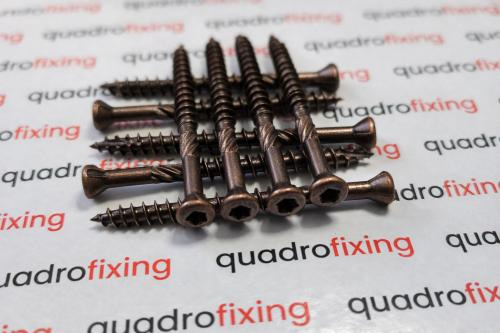

Stainless steel screws for decking and facades

QUADROFIX ANTIK C2

QUADROFIX ANTIK stainless steel screws made of hardened C2 stainless steel are designed for wooden decks, facades, and other exterior wooden constructions.
The ANTIK color finish allows discreet visual matching with wood surfaces, making the screws less visible after installation.
The screws are wax-coated, which reduces driving resistance and ensures faster, easier installation with less effort.


Applications

  • Wooden decking

  • Wooden facade cladding

  • Light exterior wooden constructions

Suitable for: spruce, pine, red spruce, siberian larch, and thermally modified wood (spruce, pine).


Diameter selection guide

  • 4.0 – 4.5 mm – facades, cladding, lightly loaded joints

  • 5.0 mm – decking, walkable surfaces, load-bearing joints


Screw features

  • Waxed surface for reduced friction and easier driving

  • Countersunk head with ribs for clean flush finishing

  • Self-drilling tip for fast and precise penetration

  • Milling cutter above the thread for efficient chip removal

  • TORX drive for secure, slip-free torque transfer


Technical parameters – QUADROFIX ANTIK C2



Technical Drawing of the TERRIX ANTIK 5.0 mm Decking Screw

Size Length (L1) Thread length (L3) Head diameter (Dt) Torx Material Surface, finish EAN
4,0 × 50 mm 50 mm 30 mm 6,0 mm TORX 15 stainless steel - C2 ANTIK, waxed 858506801539
4,5 × 50 mm 50 mm 30 mm 7,0 mm TORX 20 stainless steel - C2 ANTIK, waxed 858506801492
4,5 × 60 mm 60 mm 36 mm 7,0 mm TORX 20 stainless steel - C2 ANTIK, waxed 858506801508
5,0 × 60 mm 60 mm 36 mm 7,5 mm TORX 25 stainless steel - C2 ANTIK, waxed 858506801515
5,0 × 70 mm 70 mm 42 mm 7,5 mm TORX 25 stainless steel - C2 ANTIK, waxed 858506801522
