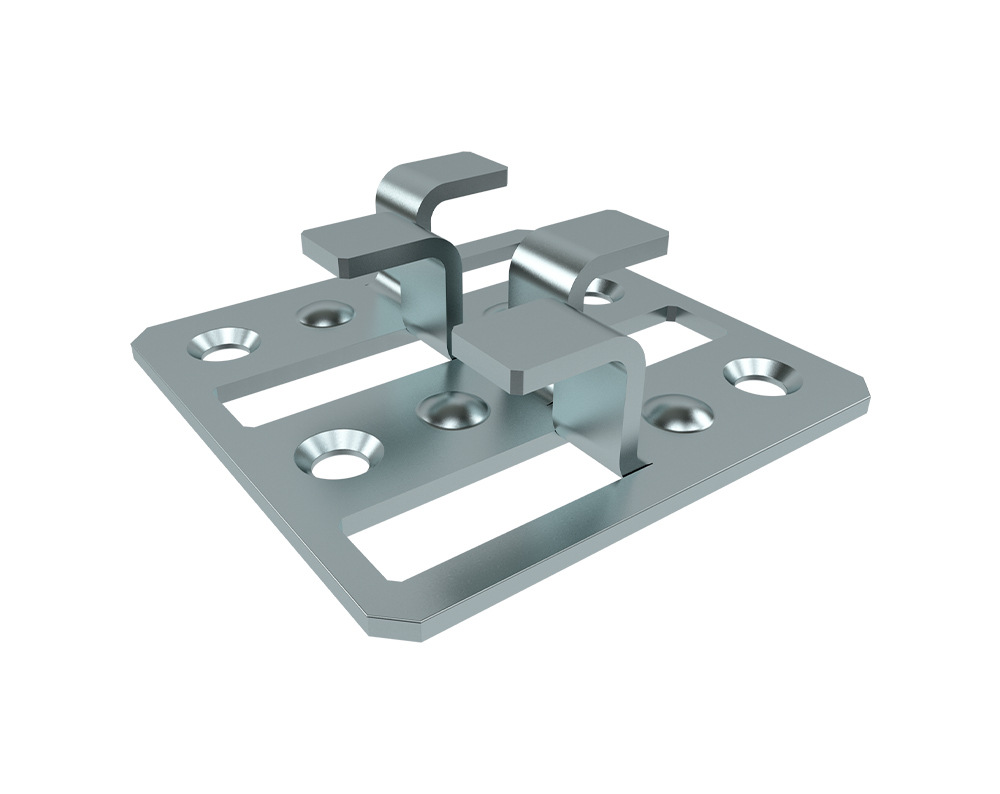

RI4 Mounting Clip for Grooved Decking Boards

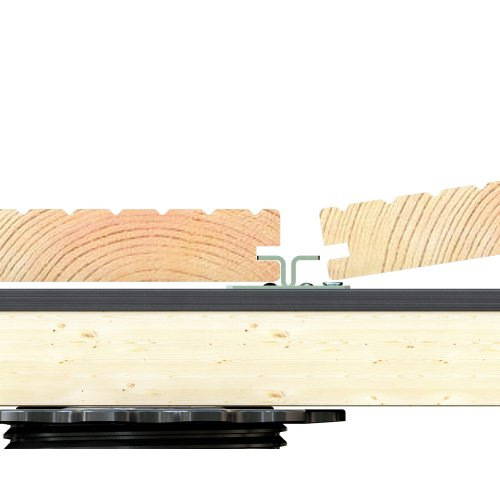

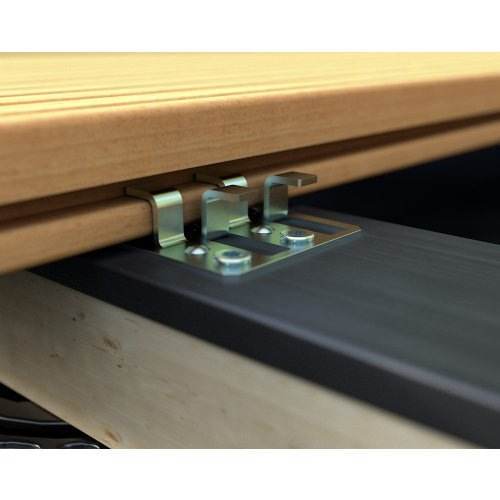

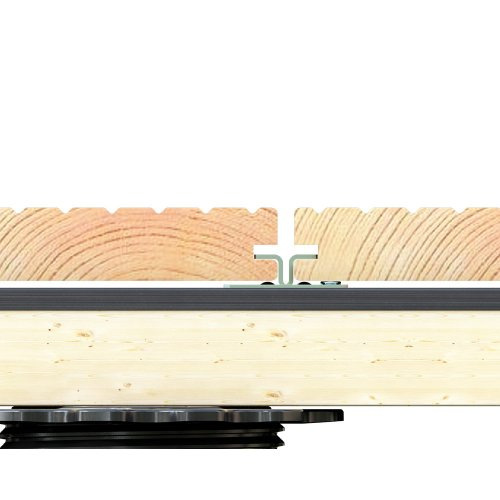

The Eurotec RI4 mounting clip is designed for the hidden fastening of decking boards with a side groove onto a timber substructure. It provides a consistent 5 mm expansion gap between the boards.

The clip is suitable for both WPC and wooden decking boards with a symmetrical side groove. It is made of hot-dip galvanized carbon steel (DX51D + Z275), making it highly resistant to weather conditions and suitable for Service Classes 1–3 according to DIN EN 1995 (Eurocode 5).

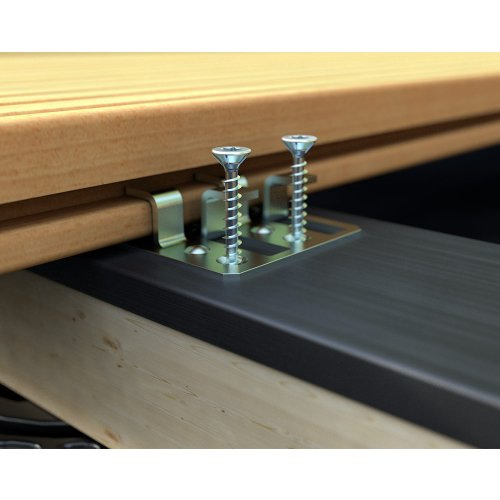

The package also includes Paneltwistec screws 3.0 × 25 mm.

Advantages

• hidden fastening without visible screws
• uniform 5 mm expansion gap
• suitable for WPC and wooden decking boards with a side groove
• compatible with timber substructures
• durable construction made of hot-dip galvanized steel
• suitable for Service Classes 1–3
• screws included in the package

Technical Specifications

• Type: RI4
• Material: Carbon steel DX51D + Z275
• Surface finish: Hot-dip galvanized
• Expansion gap between boards: 5 mm
• Application: Decking boards with a side groove
• Substructure: Timber

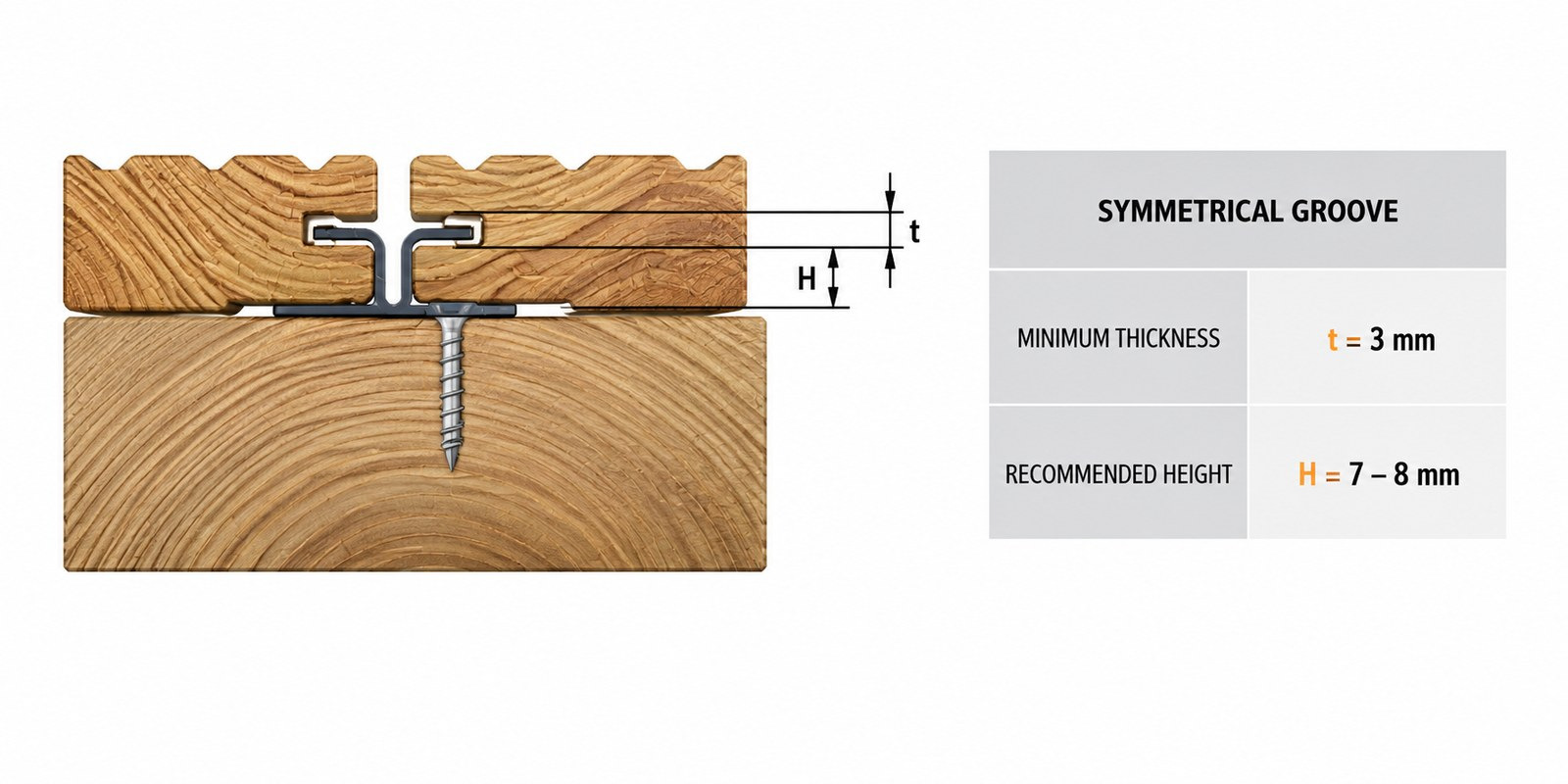

• Suitable for: WPC and wooden decking boards with a symmetrical side groove
• Standard: DIN EN 1995 (Eurocode 5)
• Service Classes: 1–3

Package Contents

• 100 × RI4 mounting clips
• 200 × Paneltwistec 1000 countersunk screws 3.0 × 25 mm

Notice

The clip is not suitable for use:

• in environments with salty air (coastal areas),
• in aggressive or chlorinated environments (e.g. around chlorinated swimming pools).
