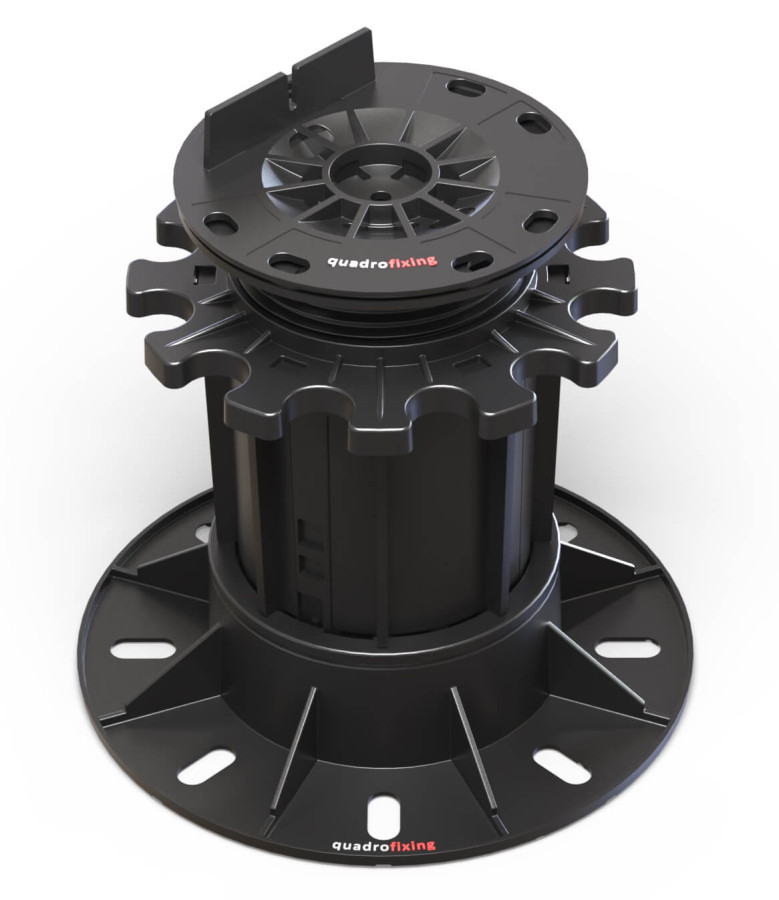

Self leveling pedestals for decking 166-221 mm ARKIMEDE
Self leveling pedestals are used on uneven ground, they can regulate the ground with a slope of up to 5%.
Rectification pedestals for storing wooden or aluminum supporting structure for terraces. A quick solution to manage the installation of the terrace, level out unevenness and also ensure ventilation of the terrace and removal of moisture from under the wooden structure. Rectification pedastals will significantly extend the life of the terrace.
You can use ARKIMEDE extensions in 25, 50, and 100 mm sizes for added height adjustment.
All rectification targets supplied by us are made in the EU. The targets meet all legislative conditions for use in building structures. Production in Italy allows regular supply in the required quantities throughout the year.
A 100 mm extension is included for a maximum height of 221 mm.
- Adjustment range: 166 to 221 mm
- Diameter of the lower part 200 mm, upper 120 mm
- Ideal for storage against walls or in corners (knocked edges of the base, marked part of the cut line on the bottom)

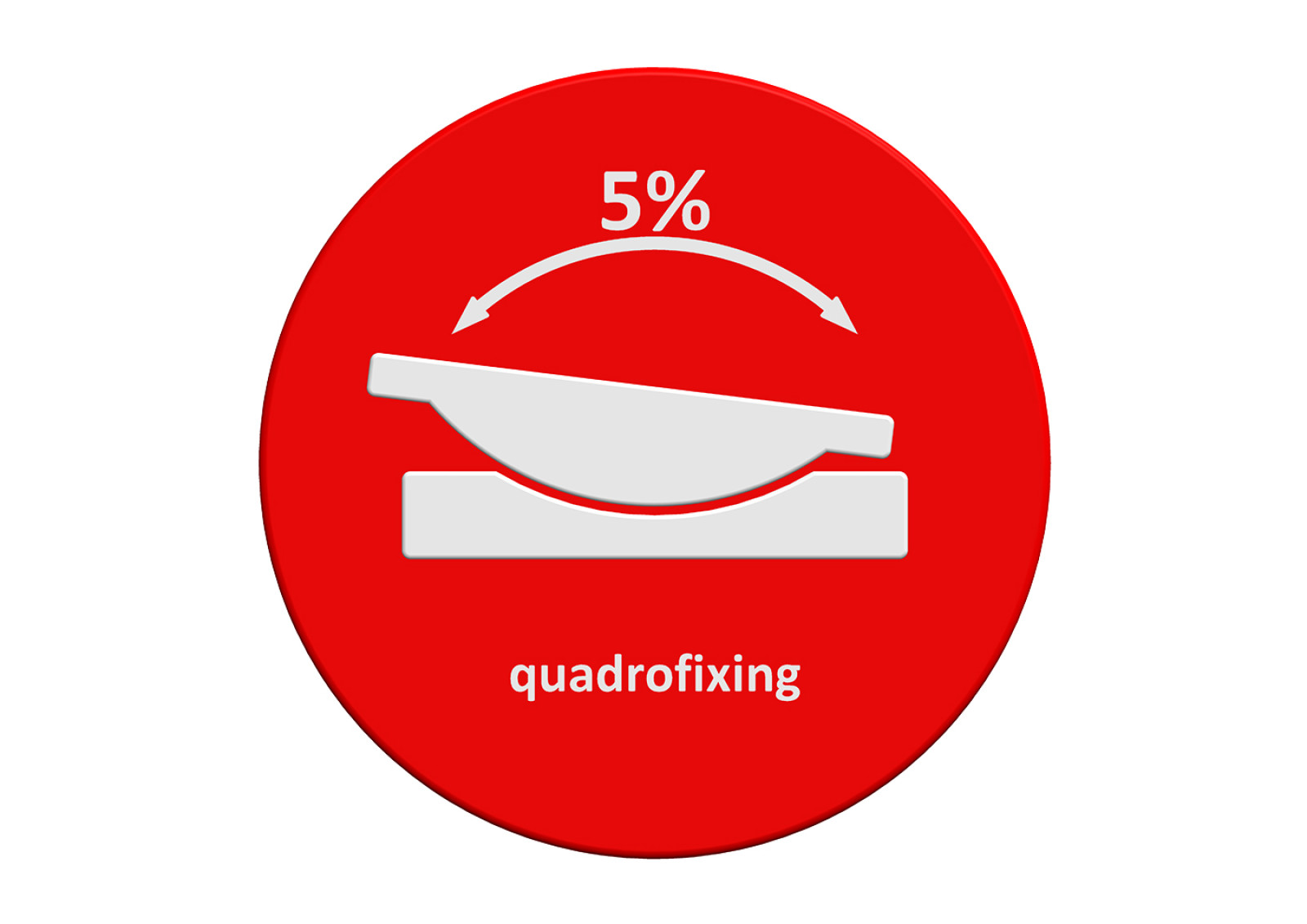

- Slope regulation up to 5%
|
- Material: PP
- Max. load of one peddestal 880 kg
- Resistant to UV radiation
- Suitable for outdoor use (-40°C +80°C)
- Quality pedestal made in the EU
|
Packaging: 1 pc.
Approximate consumption of pedestals for wooden terrace (pcs./m2)
Storage of rectification pedestals |
20 m2 |
40 m2 |
60 m2 |
80 m2 |
100 m2 |
200 m2 |
1000 m2 |
50 cm x 70 cm* |
4.1 |
3.9 |
3.7 |
3.5 |
3.4 |
3.2 |
3 |
50 cm x 50 cm* |
5 |
4.7 |
4.6 |
4.5 |
4.4 |
4.3 |
4.1 |
40 cm x 70 cm* |
4.6 |
4.6 |
4.4 |
4.2 |
4.1 |
3.9 |
3.8 |
40 cm x 50 cm* |
6.1 |
5.8 |
5.6 |
5.5 |
5.5 |
5.3 |
5.2 |
*(distance between structural prisms x distance between pedestals)
