SIHGA Stabilix C - wood connector (1 pc.)


Size and packaging:
Stabilix C 10, 150x80x12 mm (1)5-7 days 0
Stabilix C 12, 170x100x12 mm (1)5-7 days 13.200
Stabilix C 14/16, 210x120x15 mm (1)5-7 days 26.600
Producer: SIHGA
Warranty: 24 months
Code: 43306
EAN: 9009470433067
Availability: 5-7 days
59.50 excl. VAT
71.40 pcs.
Watchdog Add to wishlist Share

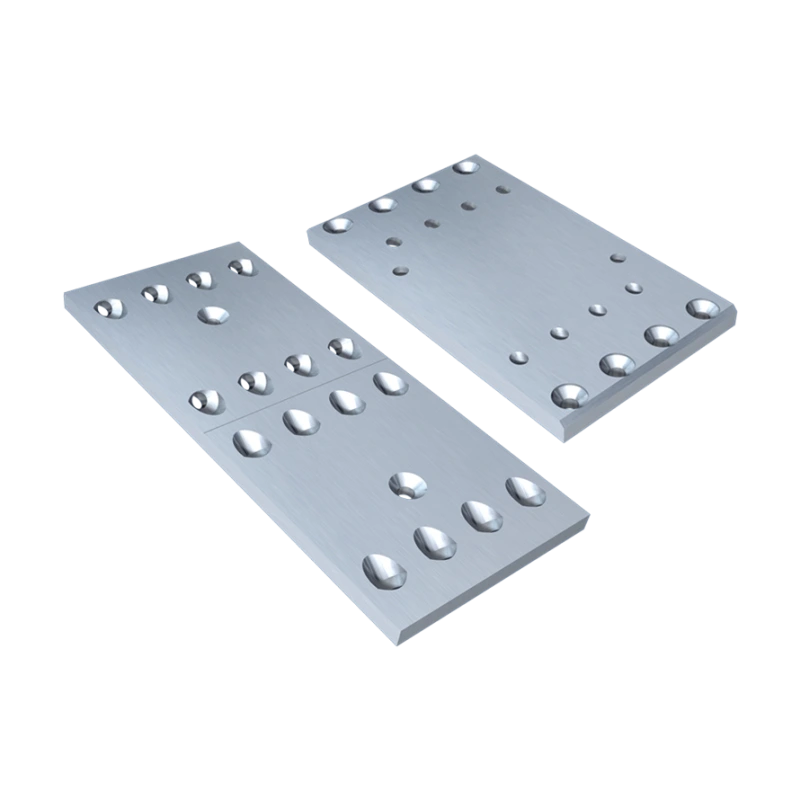

SIHGA Stabilix C - wood connector


Material: aluminium, EN-AW 6063-T66 (AlMgSi0,5)

Innovative solution to increase the stiffness of the joists. Transfers horizontal and vertical forces in the structure, resists snow and wind loads. Eliminates wooden struts thus increasing the usability of the built-up space. Works well with beam connectors (Eurotec MAGNUS, Eurotec ATLAS) or with Eurotec IdeeFix.

Application: joining beams or wooden beams. The timber joints can be hidden on an invisible part of the structure (upper, non-visible part). The construction is not only extremely rigid, it is also free of interfering fasteners. The construction is solid, but without visible winding wooden elements, it gives a luxurious impression.

Thanks to its construction, it replaces the physically, time-consuming and material-intensive re-screwing of wood. It resists both tensile and shear forces. Minimally weakens the wood. Easy and quick to fit.

The beam coupling can be used especially for sheds, gazebos or carports.


Packing: 1 piece (1 piece = Stabilix C connector + screws for fitting the connector)

Stabilix C10: 1 pc coupling, 6 pcs GoFix S+ 8,0x95 mm, 4 pcs GoFix S+ 8,0x155 mm

Stabilix C12: 1 pc coupling, 2 pcs GoFix S+ 8.0x95 mm, 6 pcs GoFix S+ 8.0x125 mm, 6 pcs GoFix S+ 8.0x195 mm

Stabilix C14/16: 1 coupling, 2 GoFix S+ 8.0x95 mm, 8 GoFix S+ 8.0x155 mm, 6 GoFix S+ 8.0x220 mm
