Adjustable pedestal EUROTEC BASE 110–210 mm for aluminium profiles QFX-ALU

NEW

Eurotec -  the specialist for fastening technology

Producer: EUROTEC
Warranty: 24 months
Code: 100003U
EAN: 4251314738639U
Availability: in stock 480 pcs.
3.20 excl. VAT
3.94 pcs.
Watchdog Add to wishlist Share

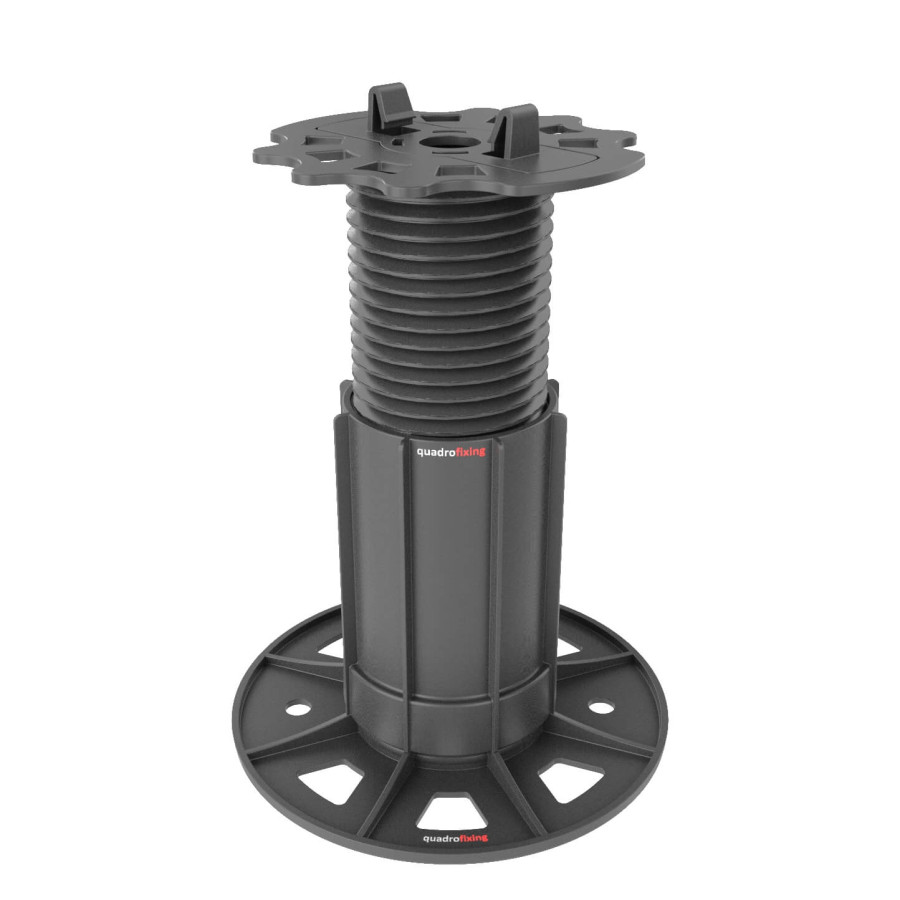

Adjustable pedestal EUROTEC BASE 110–210 mm for aluminium profiles QFX-ALU

The Eurotec Base Adjustable Pedestal 110-210 mm for QFX Alu Profiles is an innovative system component designed to support aluminum decking frames securely and efficiently. The pedal includes a “click-on” adapter for QFX Alu profiles, enabling installation without screws and allowing slight repositioning along the profile.

Key Features & Technical Information

  • Recommended load: 220 kg per pedestal (≈ 1 000 kg/m²). Under this load, displacement is around 2 mm; maximum load is significantly higher.

  • Height adjustment range: 110 – 210 mm

  • Included adapter: for QFX-ALU 24 and QFX-ALU 50 profiles

  • Material: high quality polypropylene copolymer (PP-C)

  • Durability: UV stabilised, frost resistant

  • Base diameter: 135 mm

Applications & Benefits

  • Ideal for mounting aluminum profile subframes for decking

  • Click-on adapter allows sliding along profile without screwing

  • Accelerates the construction of supporting frame and improves ventilation

  • Ensures drainage and helps prevent structural deformation

  • Increases long-term stability and durability of the terrace

Usage Tips

  • Use the adapter for correct QFX Alu profile fits

  • Adjust height before fixing boards

  • Avoid overtightening to maintain flexibility

  • Use pedestals at proper spacing according to design load
