Professional screws with CE certification

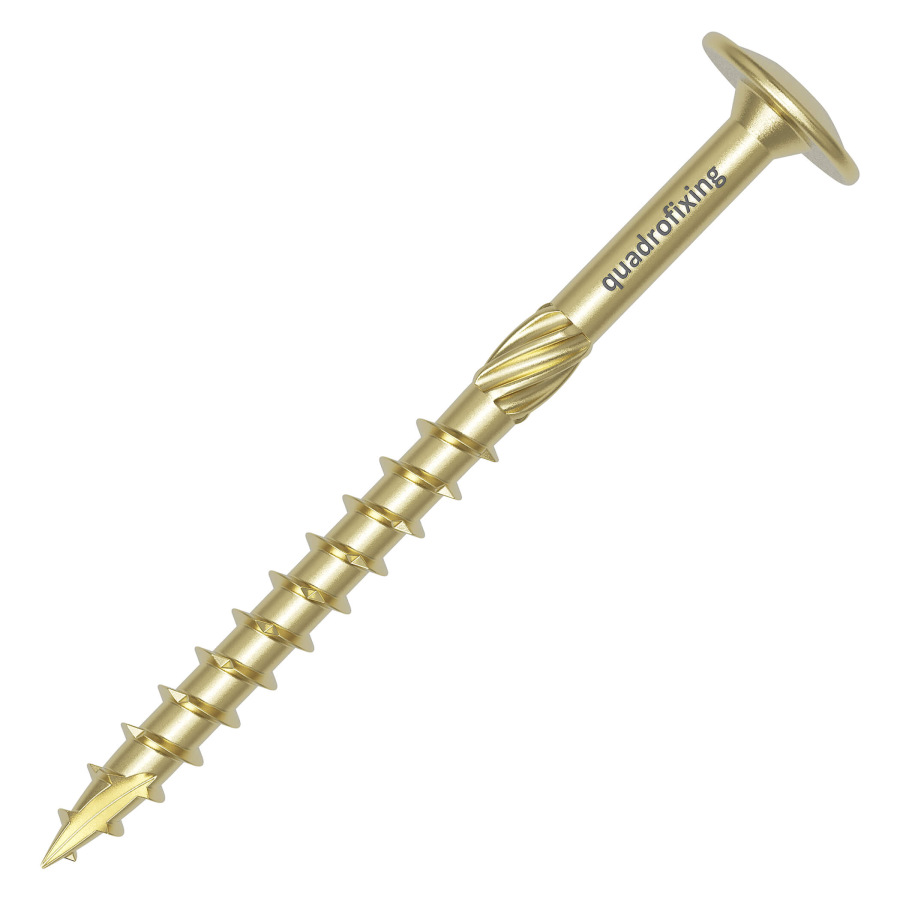

Construction screw 8.0 mm, plate head (50 pcs. + bit)
Construction screw 8.0 mm, plate head (50 pcs. + bit)
The structural screw Ø 8.0 mm with a flange head is designed for strong and secure connections in timber structures such as roof trusses, beams, and frame joints. It is made from high-quality carbon steel with a durable yellow-zinc coating that provides excellent corrosion resistance. Thanks to the sliding wax coating, the screw drives smoothly without damaging the wood. The wide flange head ensures strong clamping force and stable tightening of beams, even in highly loaded structural joints. A professional screw with CE certification, suitable for carpentry and structural timber applications.
Material: carbon steel with yellow-zinc surface coating, sliding wax
Packaging: 50 pcs + Torx 40 driving bit
Applications:
|
Key features:
|

| head diameter (dt): 22 mm | d2: 5.9 mm | T: TORX 40 | screw diameter (d): 8.00 mm |

| Dimensions (mm) | Head diameter (dt mm) | Thread length (l1 mm) | Torx (T) |
| 8x60 | 22 | 36 | TX40 |
| 8x80 | 22 | 48 | TX40 |
| 8x100 | 22 | 60 | TX40 |
| 8x120 | 22 | 75 | TX40 |
| 8x140 | 22 | 80 | TX40 |
| 8x160 | 22 | 90 | TX40 |
| 8x180 | 22 | 100 | TX40 |
| 8x200 | 22 | 100 | TX40 |
| 8x220 | 22 | 100 | TX40 |
| 8x240 | 22 | 100 | TX40 |
| 8x260 | 22 | 100 | TX40 |
| 8x280 | 22 | 100 | TX40 |
| 8x300 | 22 | 100 | TX40 |
| 8x320 | 22 | 100 | TX40 |
| 8x340 | 22 | 100 | TX40 |
| 8x360 | 22 | 100 | TX40 |
| 8x380 | 22 | 100 | TX40 |
| 8x400 | 22 | 100 | TX40 |
