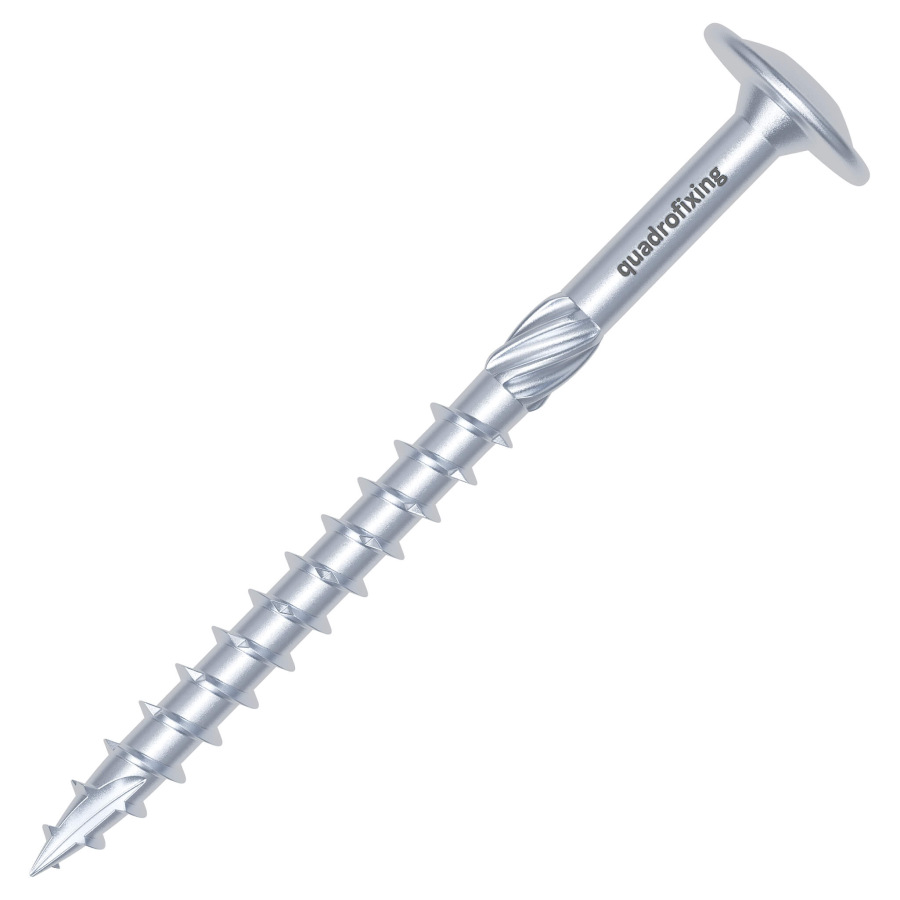

Construction screws 8,0 mm, plate head, white zinc (50 pcs + bit)

Dimension and packaging:

	8x80 mm (50+bit)	11
	8x100 mm (50+bit)	18
	8x120 mm (50+bit)	19
	8x140 mm (50+bit)	12
	8x160 mm (50+bit)	5
	8x180 mm (50+bit)	10

Producer: PGB EUROPE

Warranty: 24 months

Availability: in stock 75 Pkg.

€ 7.97 excl. VAT

€ 9.80 Pkg.

Watchdog Add to wishlist

Description Need advice?

Construction screw Ø 8.0 mm, white zinc

Construction screw Ø 8.0 mm with plate head is designed for joining wooden structures such as trusses, support beams, columns and frame joints. It is made of carbon steel with a white zinc coating that provides corrosion protection and is suitable for use in dry and slightly damp environments.

The slip wax makes screwing easier, reduces resistance during assembly and limits stress on the wood. The platen head ensures high clamping force and uniform tightening of the fasteners, which is particularly important for load-bearing and stressed joints. The screw meets CE/ETA certification requirements and is suitable for carpentry and construction work.

Material: carbon steel, white zinc, sliding wax
Packing: 50 pcs + Torx 40 tightening bit

Application:

Screwing of wooden materials
Universal screw for wooden constructions, especially used on highly stressed joints

Specific screw features:

drill tip for fast drilling of the screw
cutter above the thread diverts chips (speeds up assembly)
sliding wax for easier and faster anchoring
lower tightening torque required, saves your strength and tools
screw drive on TORX 40 - no slippage when screwing
dimensionally stronger screw than standard

Professional screws with CE certification

head diameter (dt): 22 mm

d2: 5.9 mm

T: TORX 40

diameter (d): 8.00 mm

Screw dimension (mm)	Head diameter (dt in mm)	Thread length (l1 in mm)	Torx (T)
8x60	22	36	TX40
8x80	22	48	TX40
8x100	22	60	TX40
8x120	22	75	TX40
8x140	22	80	TX40
8x160	22	90	TX40
8x180	22	100	TX40
8x200	22	100	TX40
8x220	22	100	TX40
8x240	22	100	TX40
8x260	22	100	TX40
8x280	22	100	TX40
8x300	22	100	TX40
8x320	22	100	TX40
8x340	22	100	TX40
8x360	22	100	TX40
8x380	22	100	TX40
8x400	22	100	TX40
