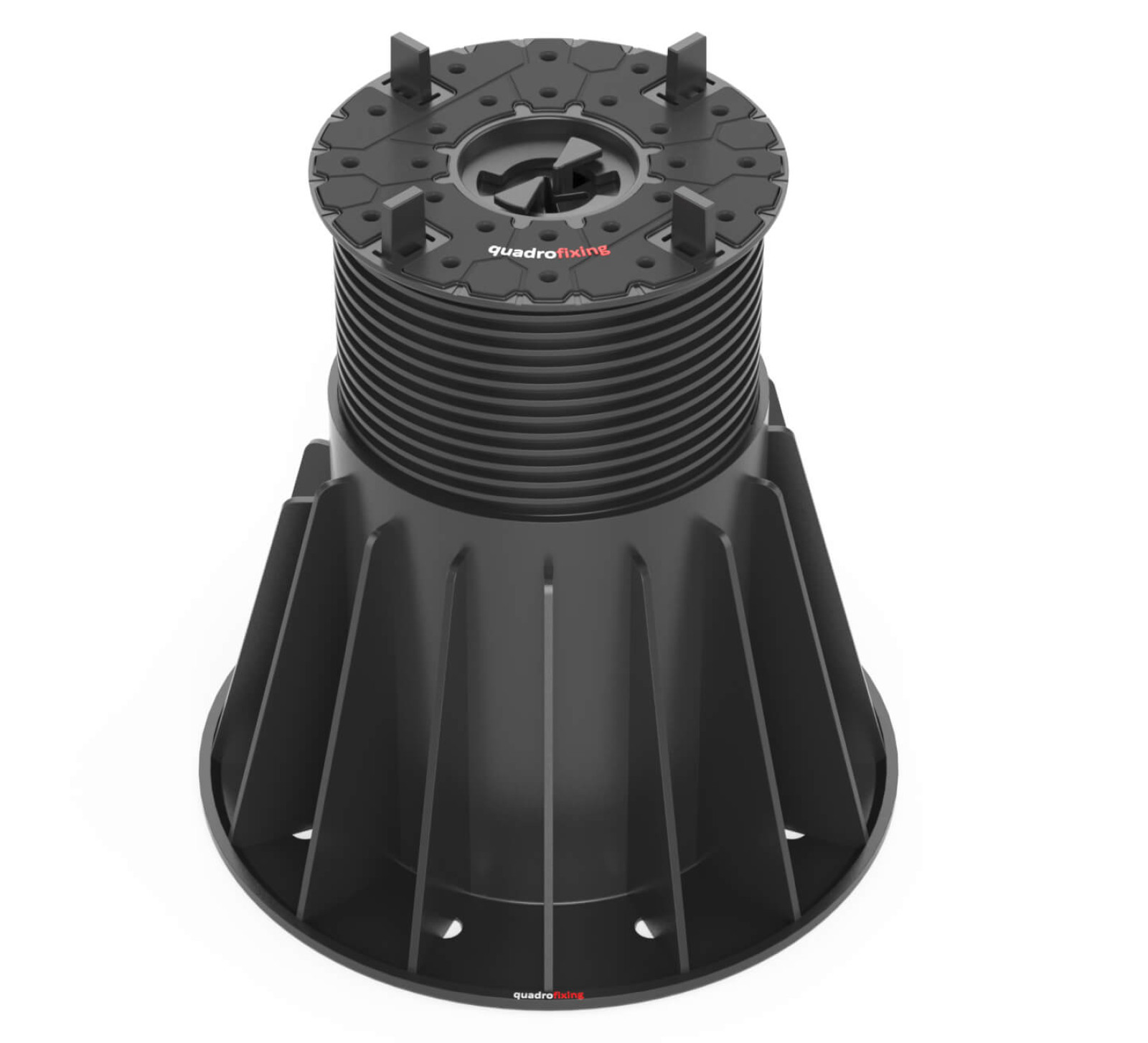

Self-Leveling Pedestal for Paving 150–270 mm HERCULES

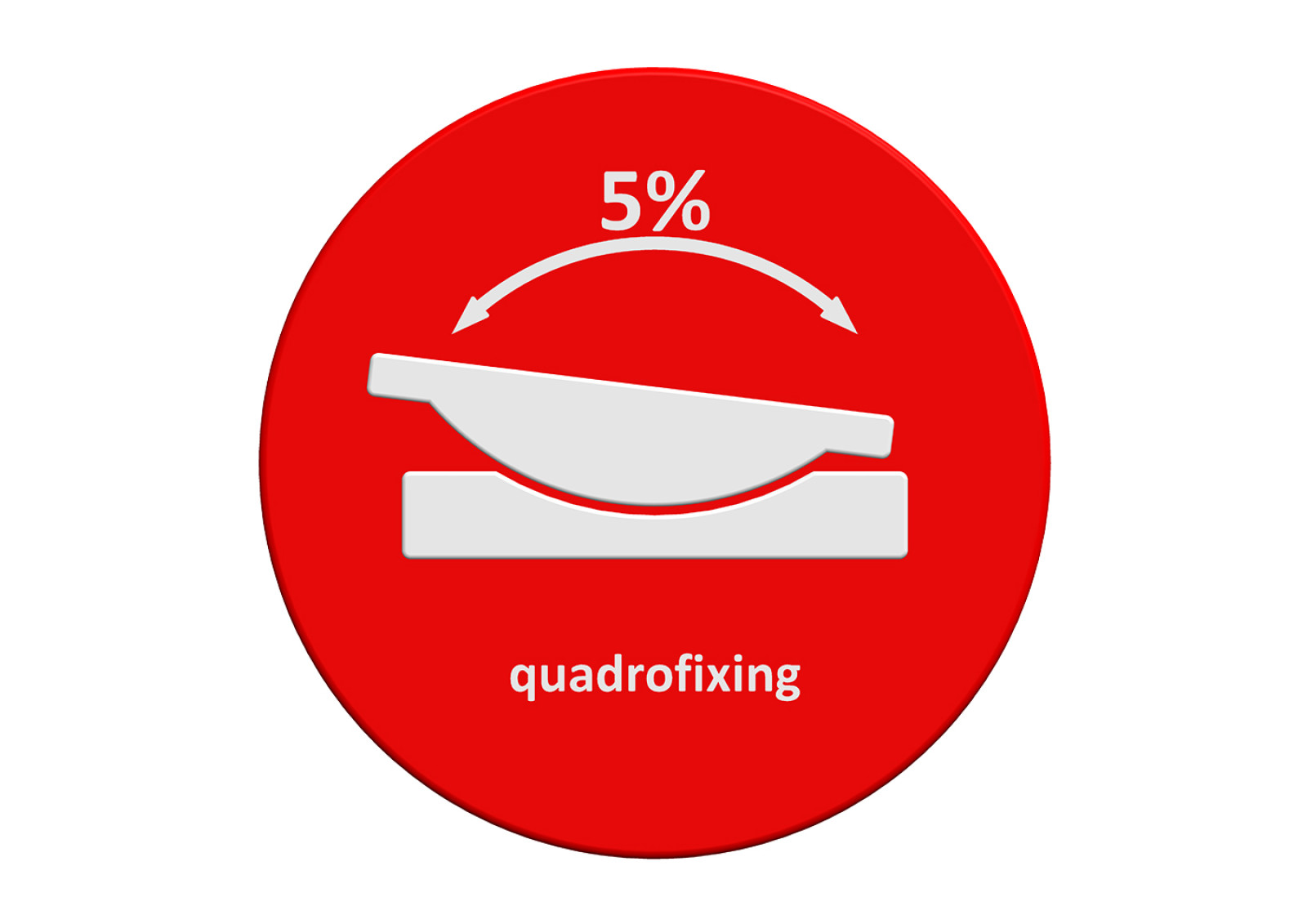

HERCULES paving pedestals offer a high-quality and robust solution with a load capacity of up to 3 tons, designed for the installation of paving on terraces, balconies, and other exterior surfaces. The self-leveling head compensates for substrate slopes of up to 5%, ensuring a level finish even on uneven ground. The head includes an integrated rubber pad that effectively dampens noise and vibrations, enhancing overall user comfort.

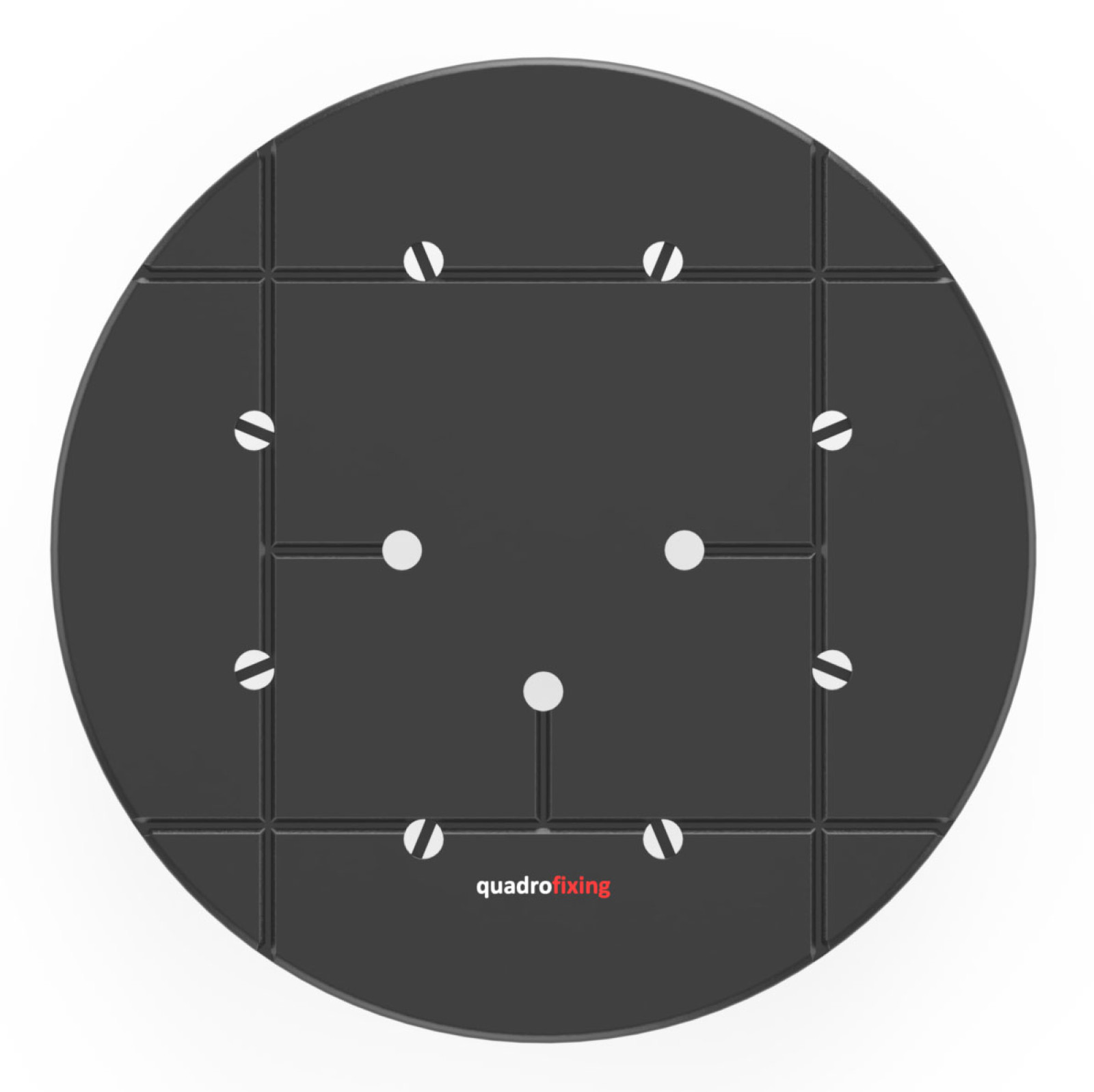

Height adjustment is easily done using a dedicated key, available in the Accessories section. The 230 mm base features cut-out guides that allow simple trimming when installing against walls, ensuring precise fitting.

Manufactured in Italy, HERCULES pedestals are intended for professional and demanding applications. They are particularly suitable for heavy and large-format outdoor paving slabs.

Technical Specifications – HERCULES 150–270 mm

• Maximum load capacity: 3000 kg

• Height range: 150–270 mm

• Spacer tab width: 4 mm

• Base diameter: 230 mm

• Head diameter: 130 mm

• Slope compensation: up to 5%

• Material: UV-resistant polypropylene (PP)

• Manufactured in: EU (Italy), premium quality

Package contents: 1 piece
