Self-Leveling Pedestal for Paving 94–150 mm HERCULES
Self-Leveling Pedestal for Paving 94–150 mm HERCULES

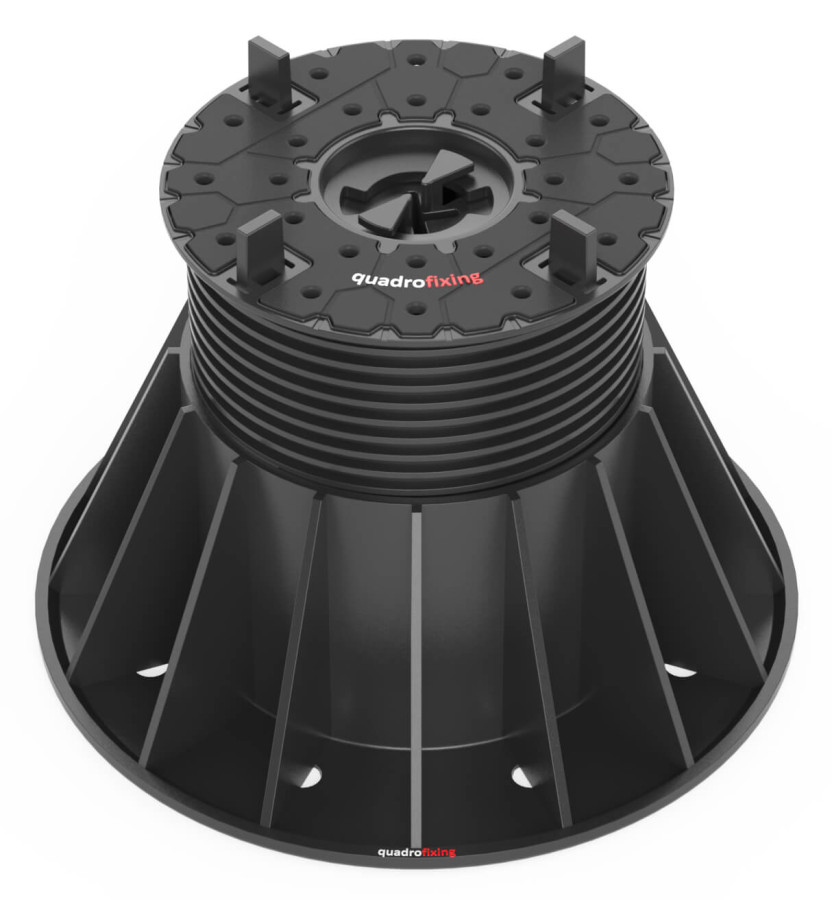

HERCULES paving pedestals are a high-quality and robust solution with a load capacity of up to 3 tons, designed for the installation of paving on terraces, balconies, and other outdoor surfaces. Thanks to the self-leveling head, they can compensate for substrate slopes of up to 5%. The head features an integrated rubber pad that effectively dampens noise and vibrations, ensuring greater walking comfort.

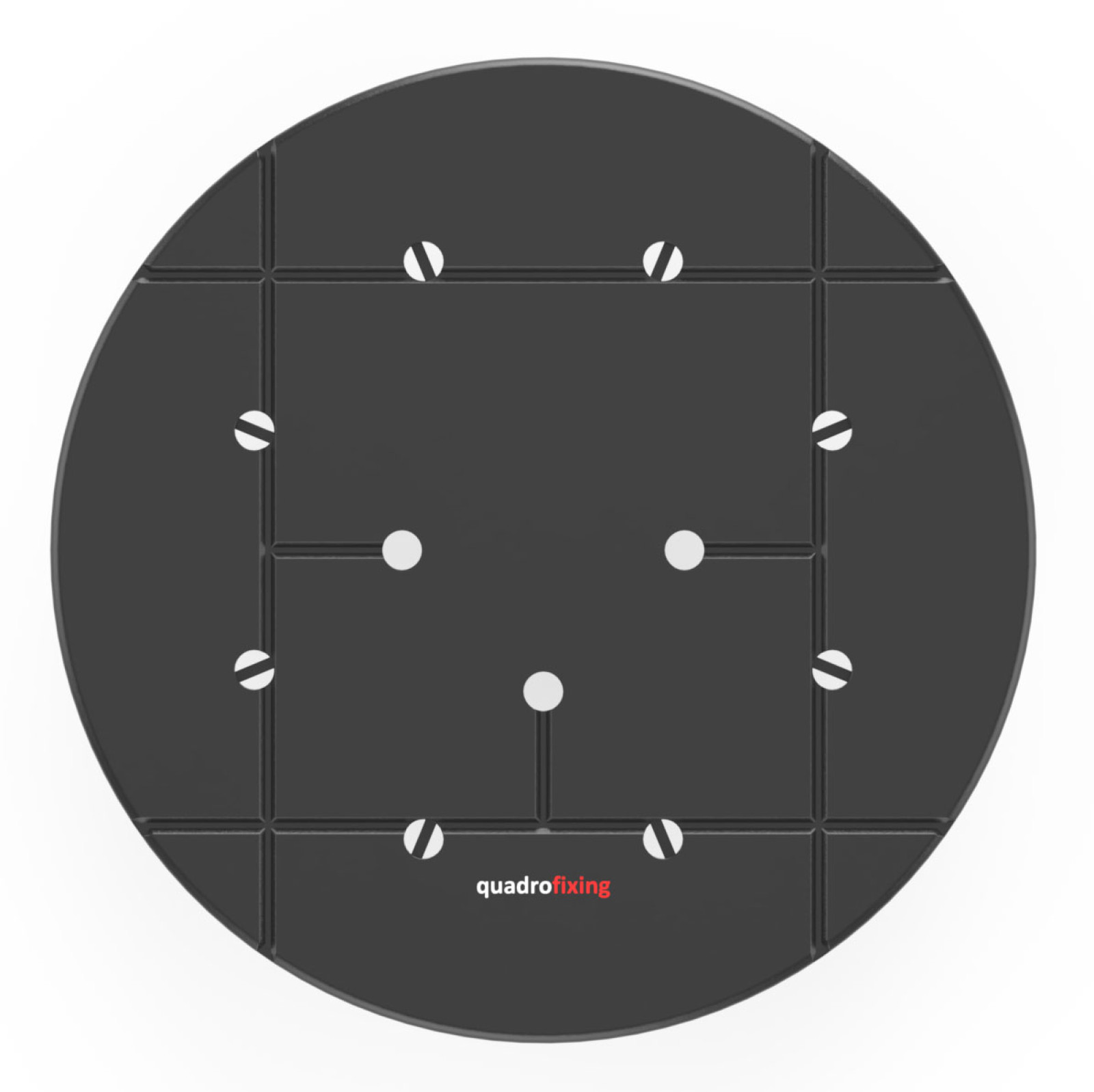

The height can be adjusted precisely using a dedicated adjustment key, available in the Accessories section. The 230 mm base includes predefined cut-out markings for easy trimming when installing along walls, allowing for precise alignment.
Manufactured in Italy, HERCULES pedestals are intended for professional and demanding paving projects. They are especially suitable for thicker and large-format terrace tiles.
Technical Specifications – HERCULES 94–150 mm
-
Maximum load capacity: 3000 kg
-
Height range: 94–150 mm
-
Spacer tab width: 4 mm
-
Base diameter: 230 mm
-
Head diameter: 130 mm
-

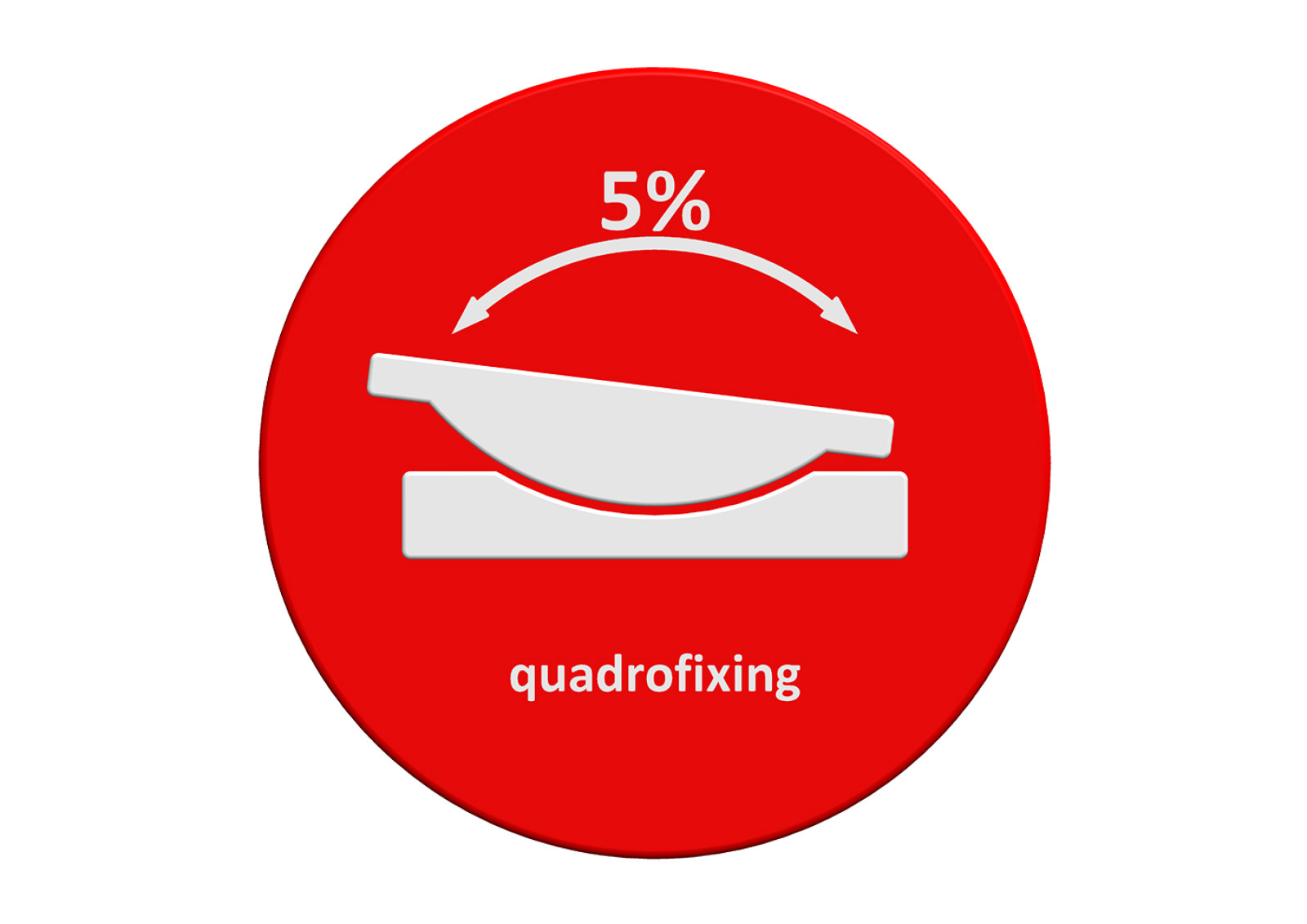

Slope compensation: up to 5%
-
Material: UV-resistant polypropylene (PP)
-
Manufactured in: EU (Italy), premium quality
Package contents: 1 piece
