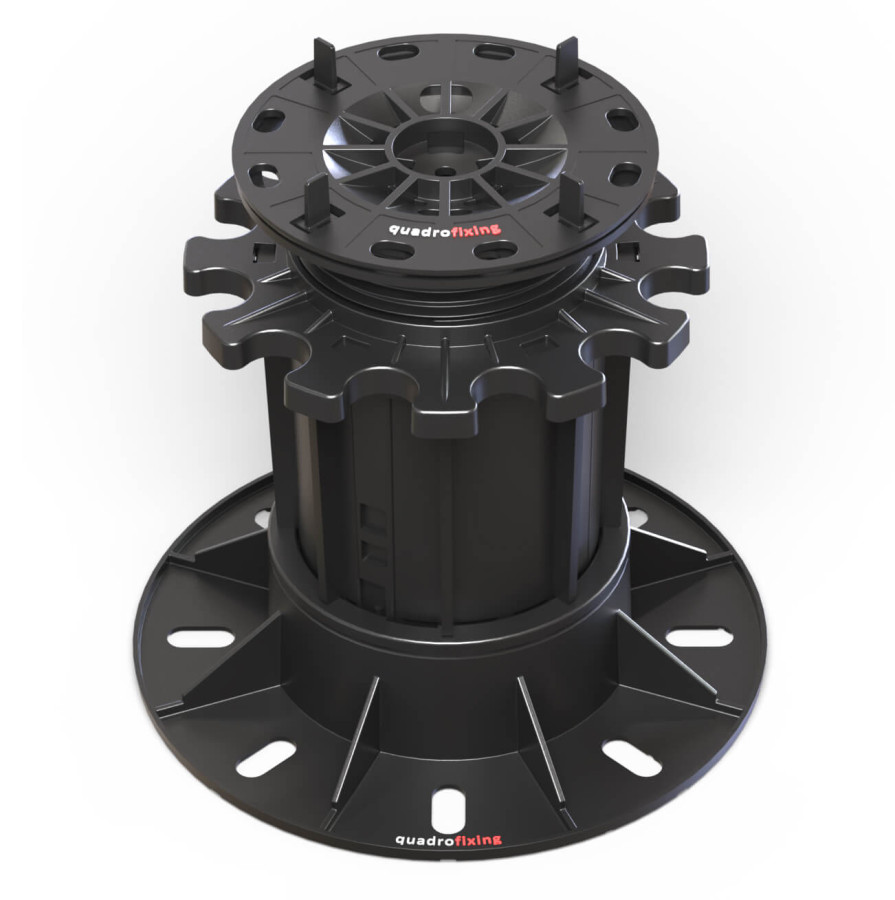

Self-Leveling Pedestal for Paving 166–221 mm ARKIMEDE (spacer tab 2–4 mm)

The ARKIMEDE 166–221 mm self-leveling pedestal is designed for outdoor use, especially for paving installations on terraces, rooftops, balconies, and shared walkable surfaces. This height-adjustable pedestal combines the benefits of the classic ARKIMEDE series with an integrated self-leveling head that automatically compensates for substrate slopes of up to 5%. The system creates joint widths of either 2 mm or 4 mm between tiles.

For optimal tile stability and noise reduction (improving walking comfort on terraces), we always recommend using rubber pads with the pedestals.

The pedestal can be combined with ARKIMEDE extensions in heights of 25, 50, and 100 mm.

Recommended rubber pad diameter: 120 mm

Technical Specifications – ARKIMEDE 166–221 mm

• Maximum load capacity (per pedestal): 880 kg

• Height range: 166–221 mm

• Spacer tab options: 2 mm or 4 mm

• Base diameter: 200 mm

• Head diameter: 120 mm

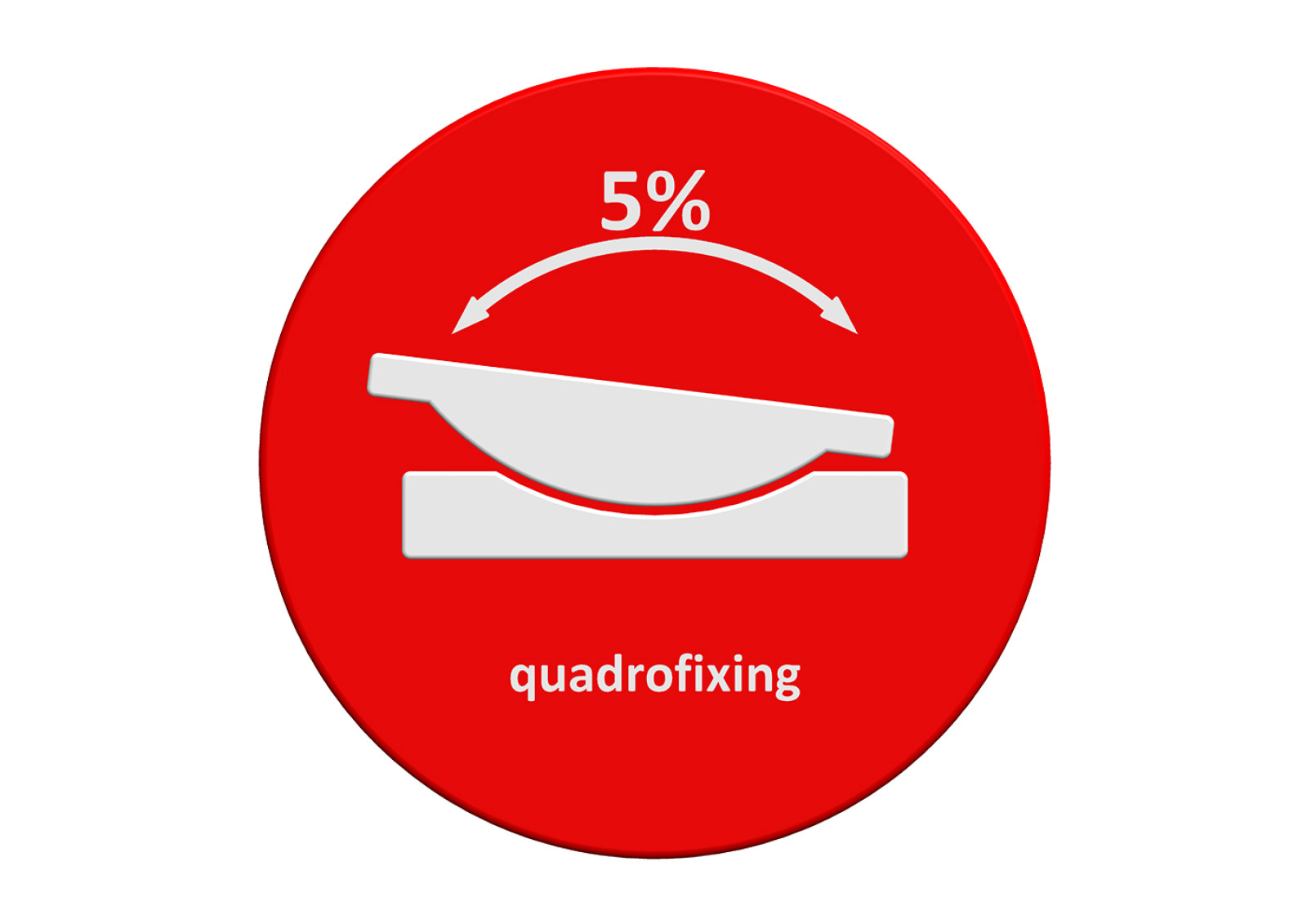

• Slope compensation: up to 5%

• Material: Polypropylene (PP)

• UV resistance: Yes

• Temperature resistance: –40 °C to +80 °C

• Application: Suitable for outdoor use

• Manufactured in: EU

Packaging: 1 piece
Included: 100 mm extension to reach 221 mm max height
