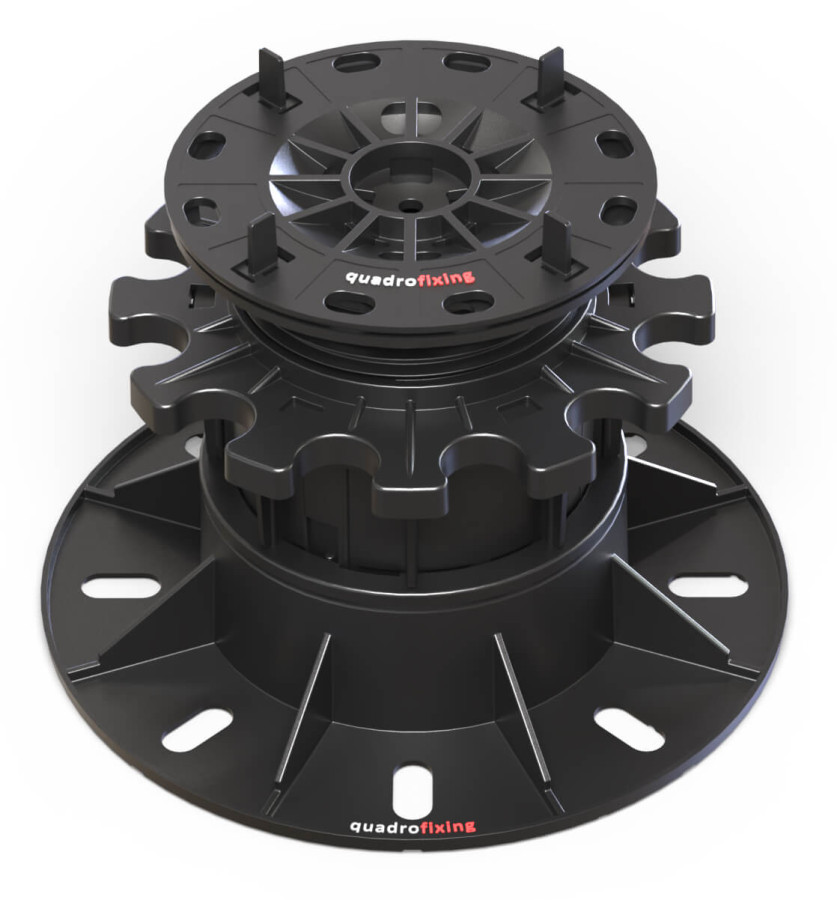

Self-Leveling Pedestal for Paving 116–171 mm ARKIMEDE (spacer tab 2–4 mm)

The ARKIMEDE 116–171 mm self-leveling pedestal is designed for outdoor use, primarily for paving installation on terraces, rooftops, balconies, and shared pedestrian areas. This height-adjustable pedestal combines the advantages of the classic ARKIMEDE series with an integrated self-leveling head that automatically compensates for substrate slopes of up to 5%. The system provides joint widths of either 2 mm or 4 mm between tiles.

To ensure stable tile positioning and reduce footstep noise (for increased walking comfort), we strongly recommend using rubber pads in combination with the pedestals.

The self-leveling pedestal is compatible with ARKIMEDE extensions in heights of 25, 50, and 100 mm.

Recommended rubber pad diameter: 120 mm

Technical Specifications – ARKIMEDE 116–171 mm

• Max. load capacity (per pedestal): 880 kg

• Height range: 116–171 mm (including a 50 mm extension)

• Spacer tab options: 2 mm or 4 mm

• Base diameter: 200 mm

• Head diameter: 120 mm

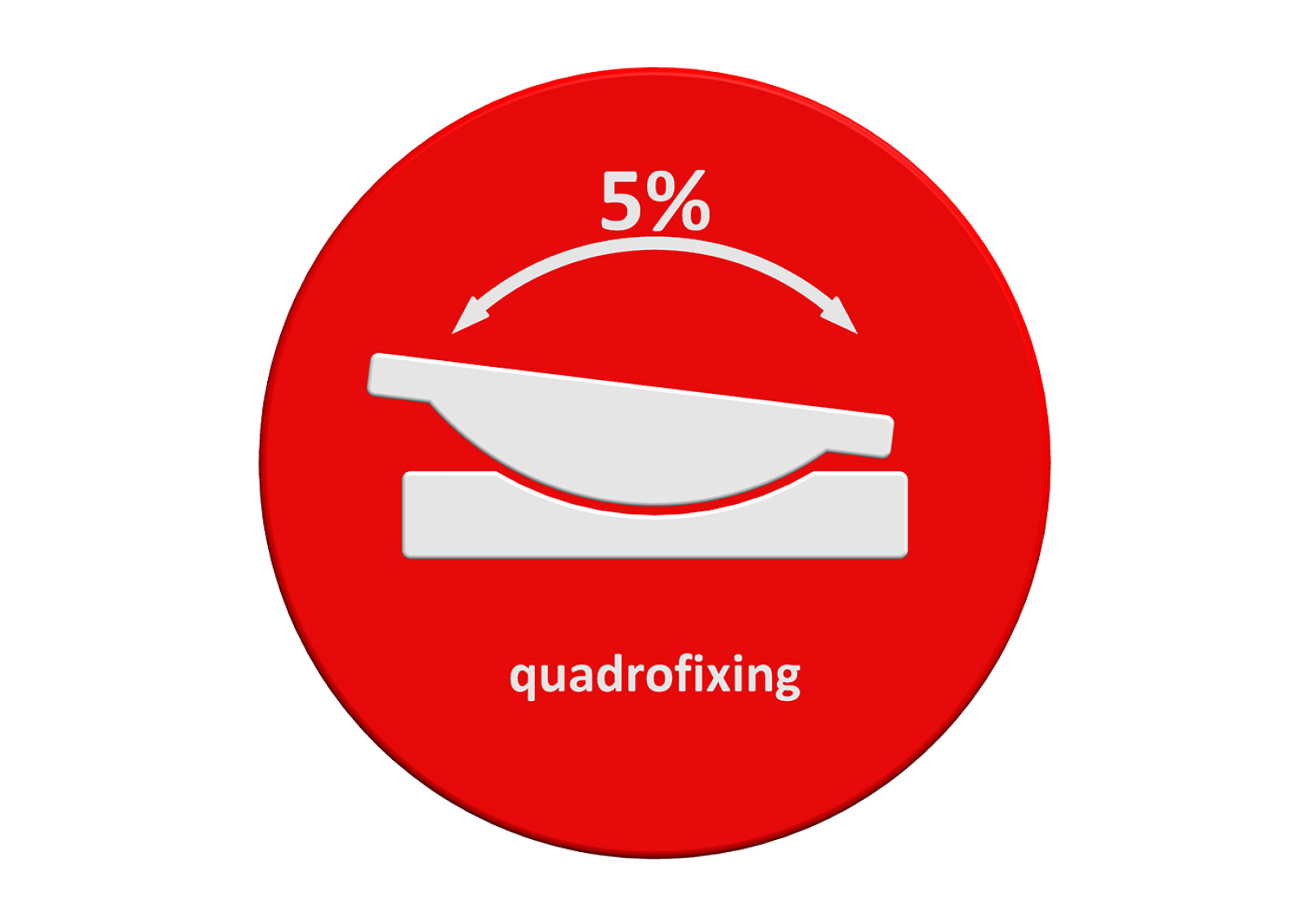

• Slope compensation: up to 5%

• Material: Polypropylene (PP)

• UV-resistant: Yes

• Temperature resistance: –40 °C to +80 °C

• Use: Suitable for outdoor applications

• Manufactured in: EU

Packaging: 1 piece
Included: 50 mm extension to reach 171 mm max height
