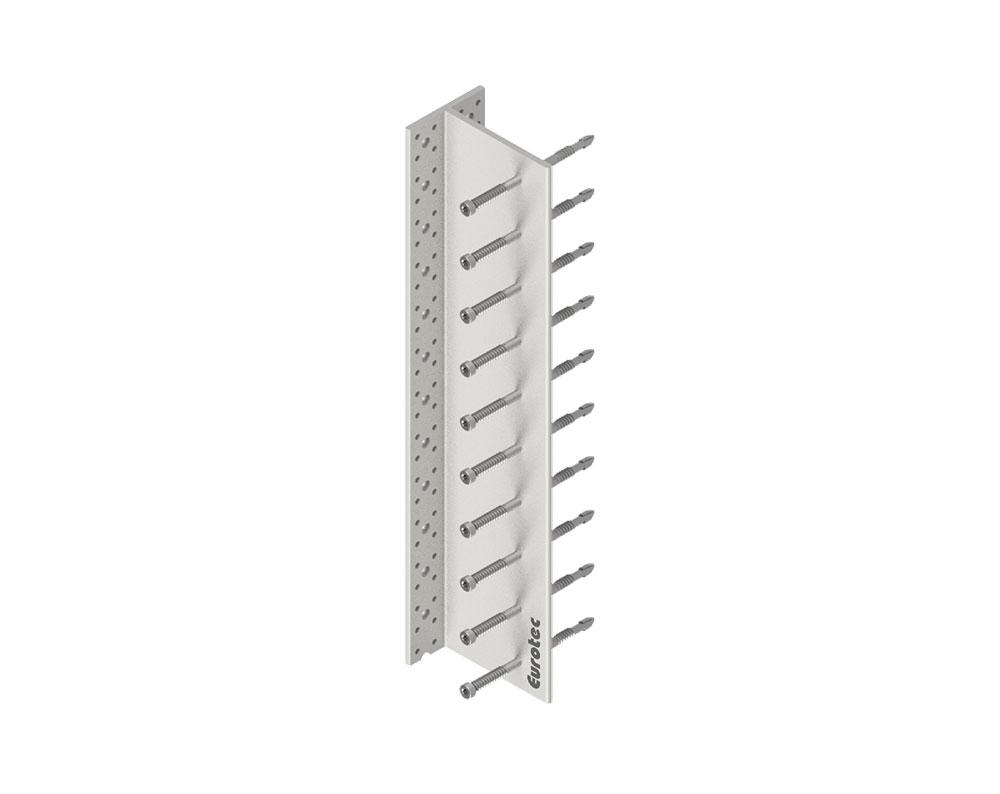

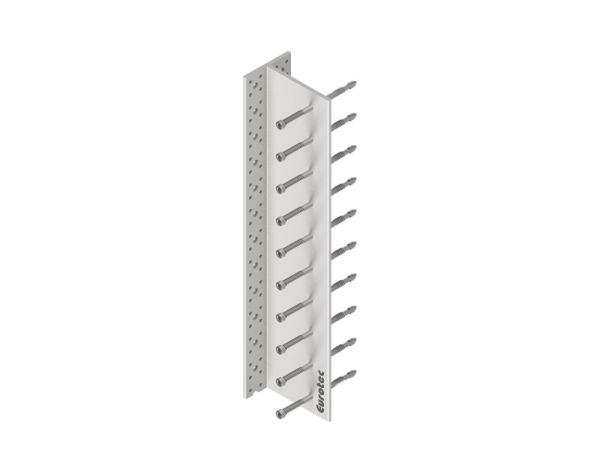

Bracket for concealed joints, aluminium, 115x80x2000 mm - Eurotec T profile

Application:

Without pre-drilling with self-tapping pin Eurote EST

Hole for 5.0 x 50 mm wood screws for connection to wooden beam

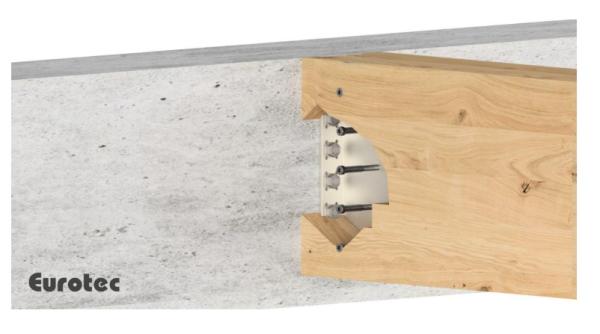

Hole for concrete screws Ø 7.5 for connection between wood and concrete
Suitable for use classes 1 and 2 according to DIN EN 1995

Description:

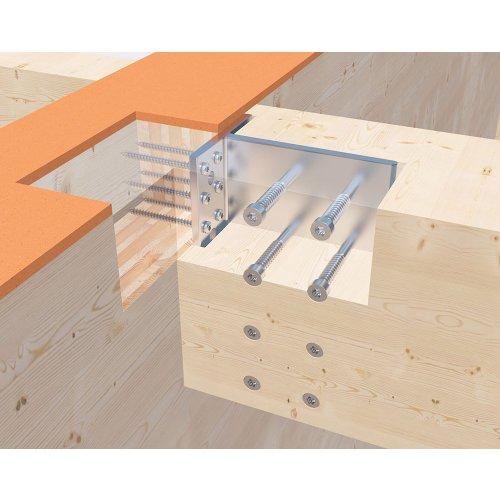

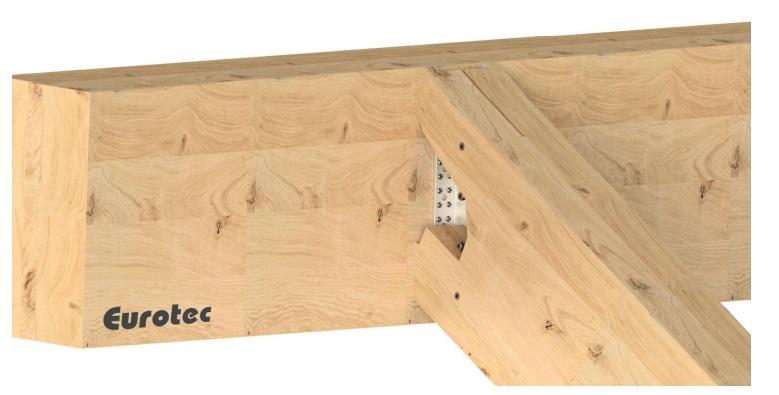

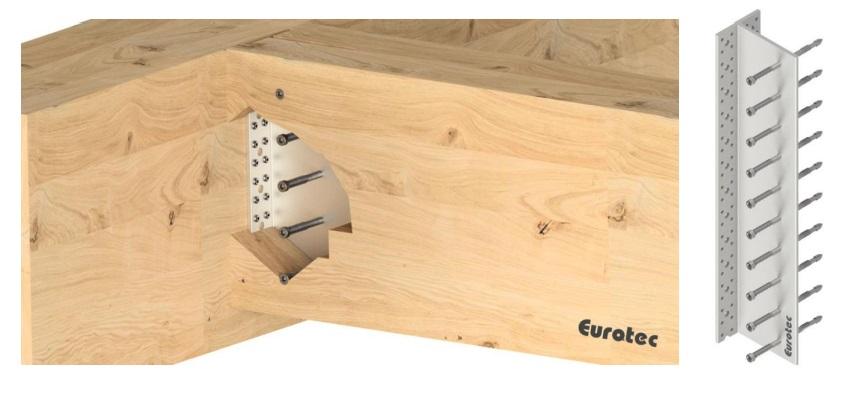

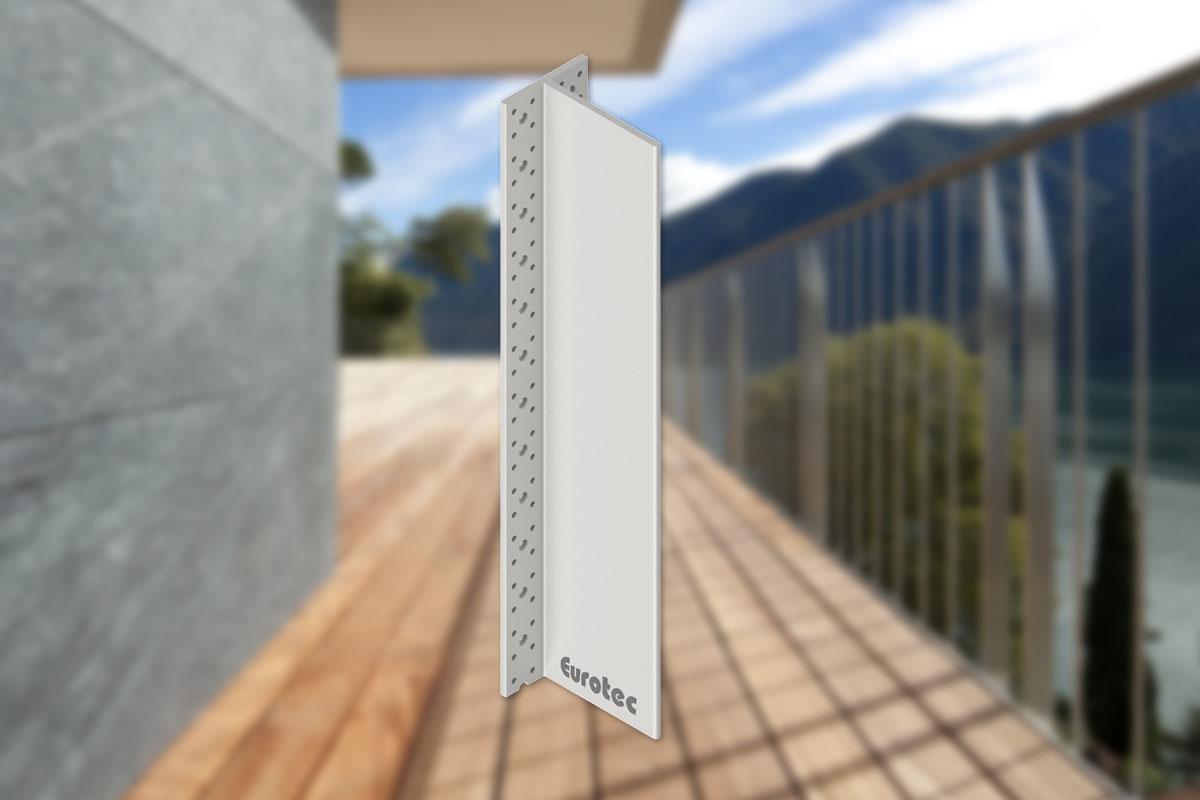

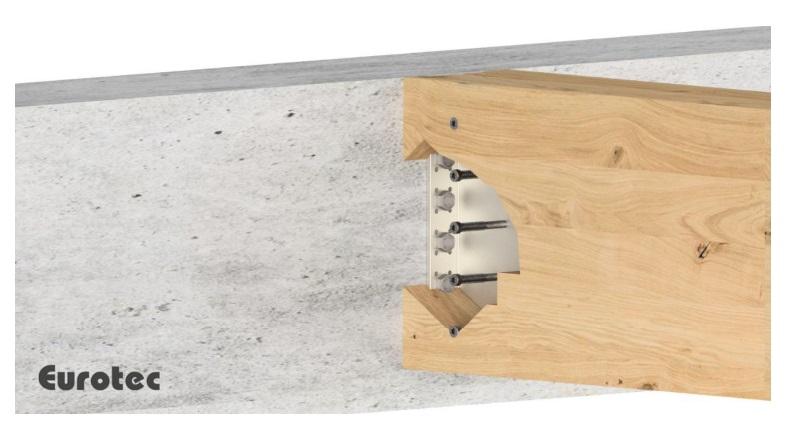

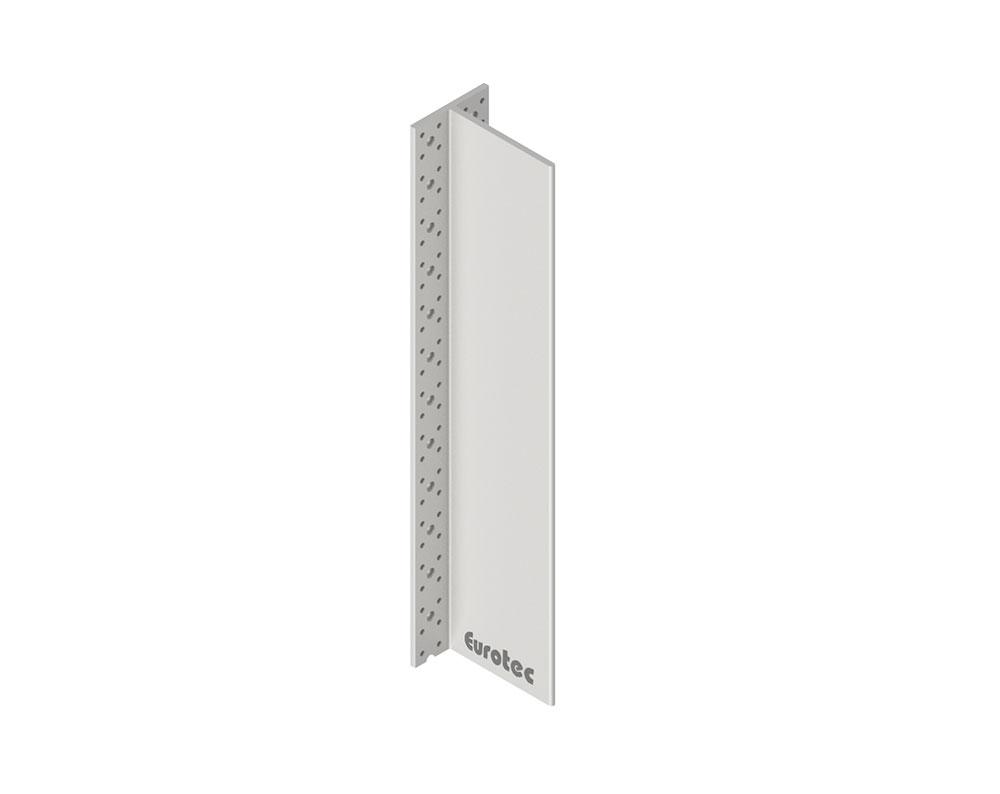

The T-profile from Eurotec is a concealed timber connector made of aluminium for indoor and outdoor use. The geometry is suitable for right-angled and angled joints of individual beams in wood/wood and wood/concrete applications.

Supplied in a combined length of 2 m - so that the T-profile can be cut to the required lengths on site. Significant savings and optimisation of invisible timber joints. Suitable for KVH, BSH (glued laminated timber), CLT but also structural building timber.

Packing: 1 piece, length 2000 mm

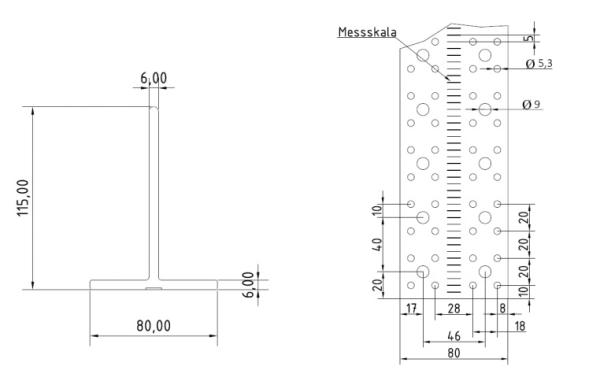

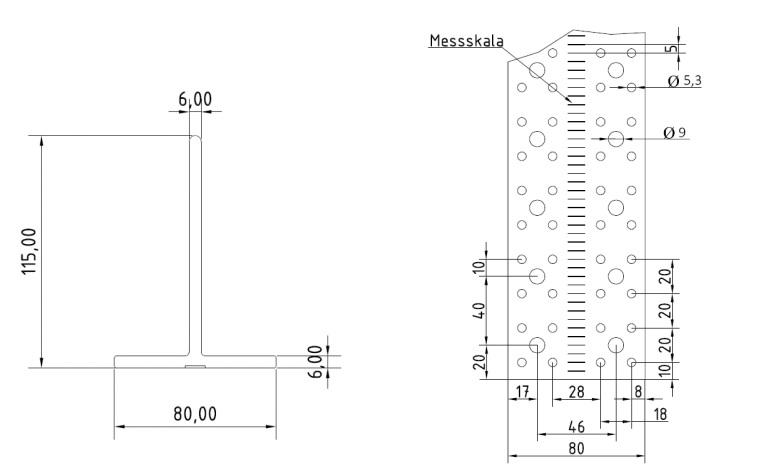

Dimensions:

Thickness: 6 mm

width: 80 mm

height: 115 mm

Technical datasheet - together with recommended connections available here:
