Corner decking clip for QFX-ALU aluminum profile

The Corner Decking Clip for QFX-ALU Aluminum Profile is designed to maintain a uniform expansion gap between the tile surface and adjacent vertical structures, such as walls or facades. It ensures clean transitions, protects edges, and is fully compatible with aluminum substructure systems. The package includes one clip with a black stainless steel screw for secure and concealed fastening.

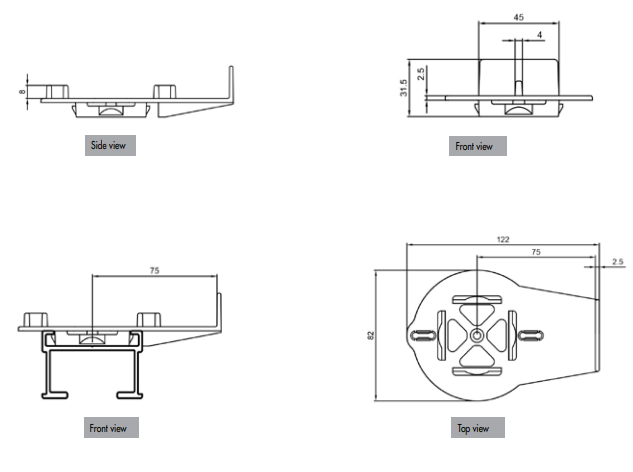

Key Features & Technical Data

  • Material: polypropylene (PP) + black stainless steel screw

  • Clip diameter: 82 / 89 mm

  • Spacer pin: 4 mm

  • Pin height: 8 mm

  • Screw dimension: 4.2 × 35 mm

  • Package: 1 clip + 1 black stainless steel screw

  • Function: ensures consistent gap from wall, protects tile edges and vertical surfaces

Applications & Benefits

  • Suitable for anchoring tiles at corners or edges adjacent to walls

  • Maintains proper spacing and protects tile edges from chipping

  • Ideal for use with QFX-ALU aluminum substructure systems

  • Concealed mounting for a clean and professional finish

  • Durable design ensures long-term performance

Usage Tips

  • Position the clip so that the spacer faces the wall or vertical surface

  • Confirm alignment before tightening the screw

  • Use moderate torque to avoid deformation

  • Ensure tiles remain evenly spaced and protected

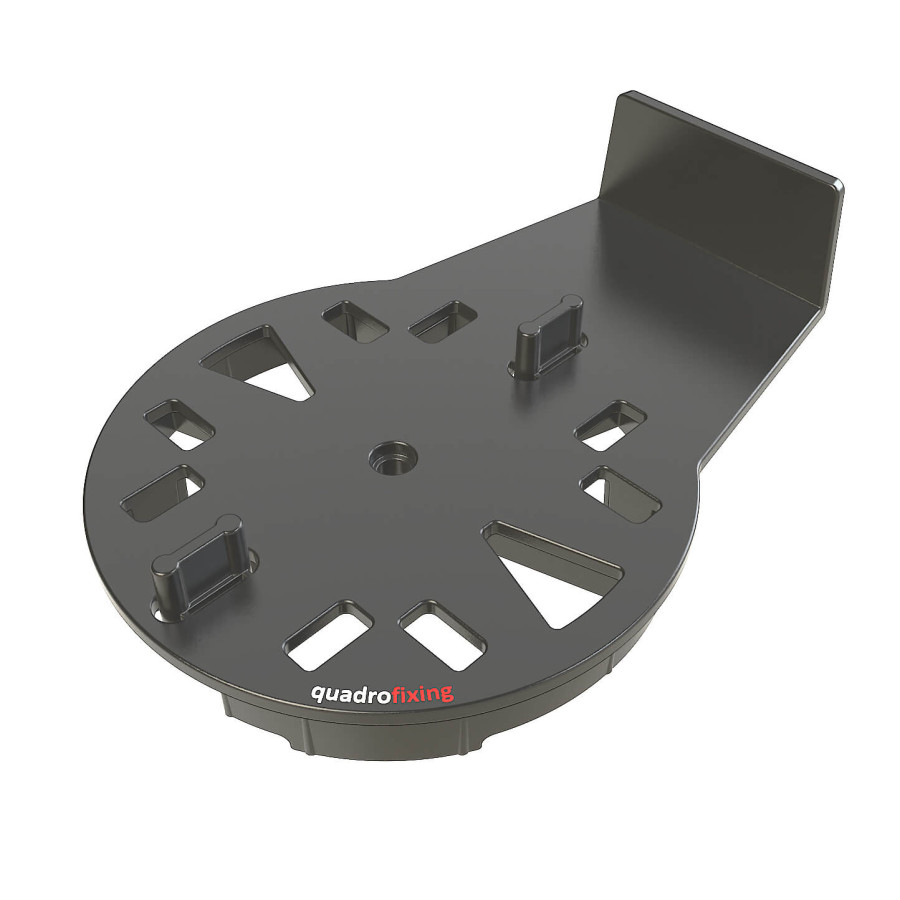

Corner decking clip for QFX-ALU

stone edge clip - application
