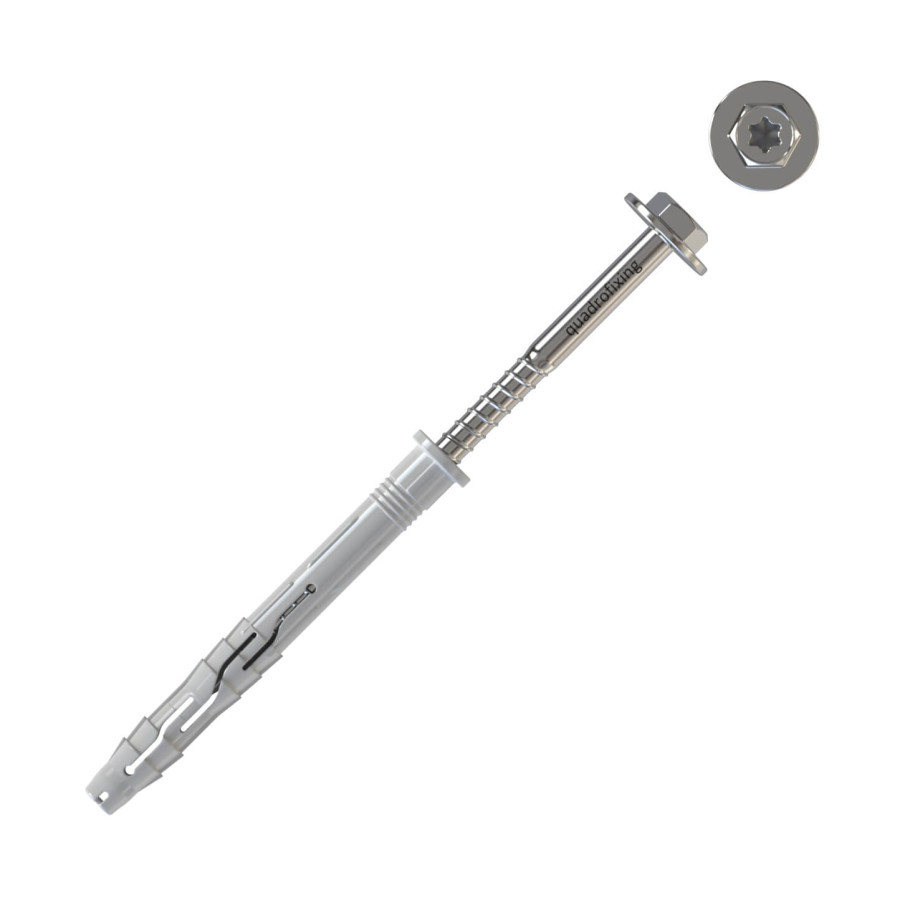

Frame dowel Ø 10 mm - screw with hexagonal head and washer, Torx 40

Dimension and packaging:

	10x60 mm (50)	10
	10x80 mm (50)	18
	10x100 mm (50)	17
	10x120 mm (50)	18
	10x140 mm (25)	24
	10x160 mm (25)	48
	10x180 mm (25)	24

Producer: PGB EUROPE

Warranty: 24 months

Code: FDCH10ZN

EAN: 5902134719719

Availability: in stock 159 Pkg.

€ 10.81 excl. VAT

€ 13.30 Pkg.

Watchdog Add to wishlist

Description Need advice?

Frame dowel, countersunk head, TORX

Material: dowel nylon PA6, screw white zinc plated (Cr 3+)

Application:

Universal dowel with ETA certificate for concrete and masonry
Optimal for anchoring the aluminium grid of ventilated facades
fixing of gates, doors, windows
suitable for metal structures

Suitable for:

Brick, perforated brick, aerated concrete, concrete

Professional frame dowel with CE/ETA certification.

Dimension of dowel in mm	drilled hole (d0) in mm	screw diameter (ds) in mm	effective depth (hef) in mm	anchor height mat. (tfix) in mm	length (l) in mm	drilled depth drilled hole depth (td) min. in mm	screw length (ls) in mm
10x60	10	7	70	10	60	70	67
10x80	10	7	70	10	80	90	87
10x100	10	7	70	30	100	110	107
10x120	10	7	70	50	120	130	127
10x140	10	7	70	70	140	150	147
10x160	10	7	70	90	160	170	167
10x180	10	7	70	110	180	190	187
10x200	10	7	70	130	200	210	207
10x230	10	7	70	160	230	240	237
10x260	10	7	70	190	260	270	267
10x300	10	7	70	230	300	310	307
