Brown stainless steel screws 4.0–5.0 mm (200 pcs + bit) QUADROFIX BROWN
Brown stainless steel screws 5,0 mm – for facades - RAL 8007
The brown stainless steel screws 5.0 mm made of hardened stainless steel C2 are specially designed for mounting wooden facades and cladding. Thanks to the brown coating on the screw head in RAL 8007, they blend perfectly with the wood and ensure an elegant, discreet appearance of the facade.
They are suitable for installing cladding made of spruce, pine, larch, siberian larch, and thermowood (e.g. thermo pine). Combining high strength, corrosion resistance, and aesthetic design, these screws are a professional choice for visible facade installation.
Application
Fastening of wooden facade claddings.
Right choice for following wood species: spruce, pine, red spruce, Siberian larch, thermowood (thermo pine, spruce)
Specific Features of the Screws
-
Ribs under the head – ensure clean countersinking without wood cracking
-
Drill point – enables fast driving without pre-drilling
-
Milling cutter above the thread – removes chips and speeds up installation
-
Sliding wax – easier screwing with lower torque
-
TORX drive – firm bit grip without slipping
Technical Parameters
Material: hardened stainless steel C2, passivated
Surface finish: waxed
Head color: brown RAL 8007
Drive: TORX
| Size | Thread length (l₁) | Head diameter (dₜ) | TORX | EAN |
| 4,0x50 mm | 30 mm | 6 mm | TX15 | 8585066800983 |
| 4,5x45 mm | 27 mm | 7 mm | TX20 | 8585066801003 |
| 4,5x50 mm | 30 mm | 7 mm | TX20 | 8585066801027 |
| 4,5x60 mm | 36 mm | 7 mm | TX20 | 8585066801041 |
| 5,0x50 mm | 30 mm | 7,5 mm | TX25 | 8585066801065 |
| 5,0x60 mm | 36 mm | 7,5 mm | TX25 | 8585066801041 |

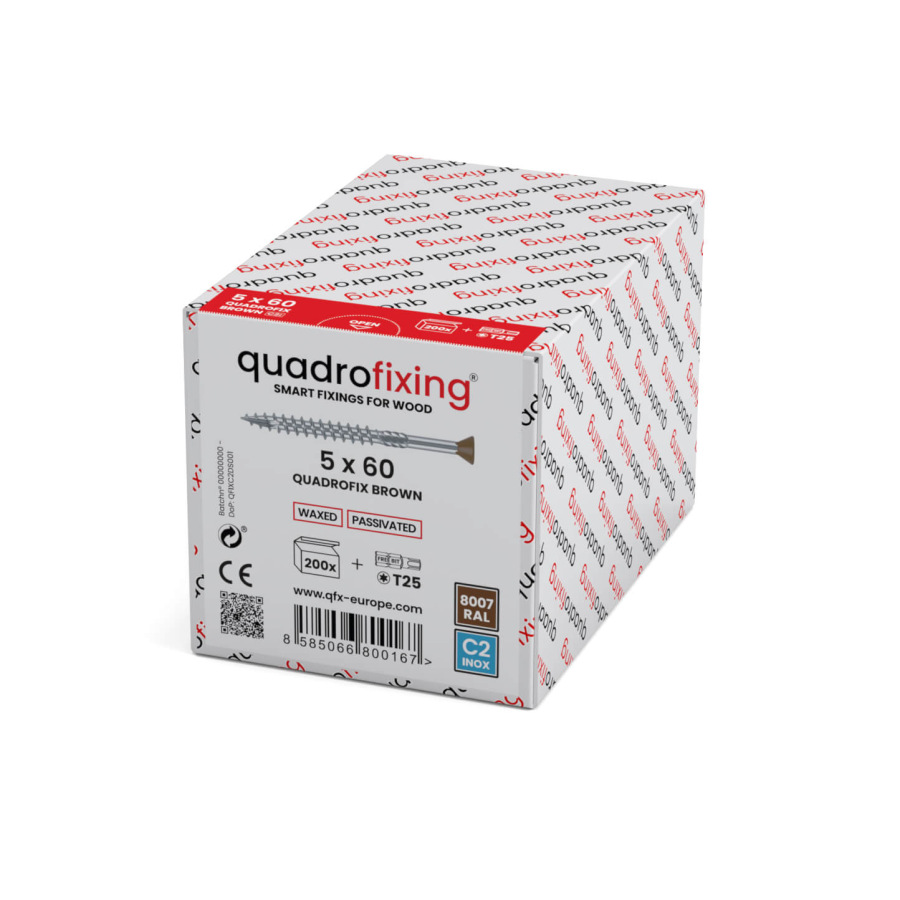

Packaging: 200 pcs + bit
Recommended accessories for wooden facade installation
QUADRO TAPE
For optimal protection of the wooden structure, we recommend using it in combination with the high-quality EPDM tape QUADRO TAPE.
Frame anchors
High-quality frame anchors for fixing the wooden supporting substructure of the terrace, available in various lengths. Surface finishes: stainless steel A4 or standard galvanized.
Facade shims MIX
Leveling shims for adjusting the height of the wooden substructure. Packaging (200 pcs), thicknesses 1 to 5 mm.
