Construction screwsFlange head

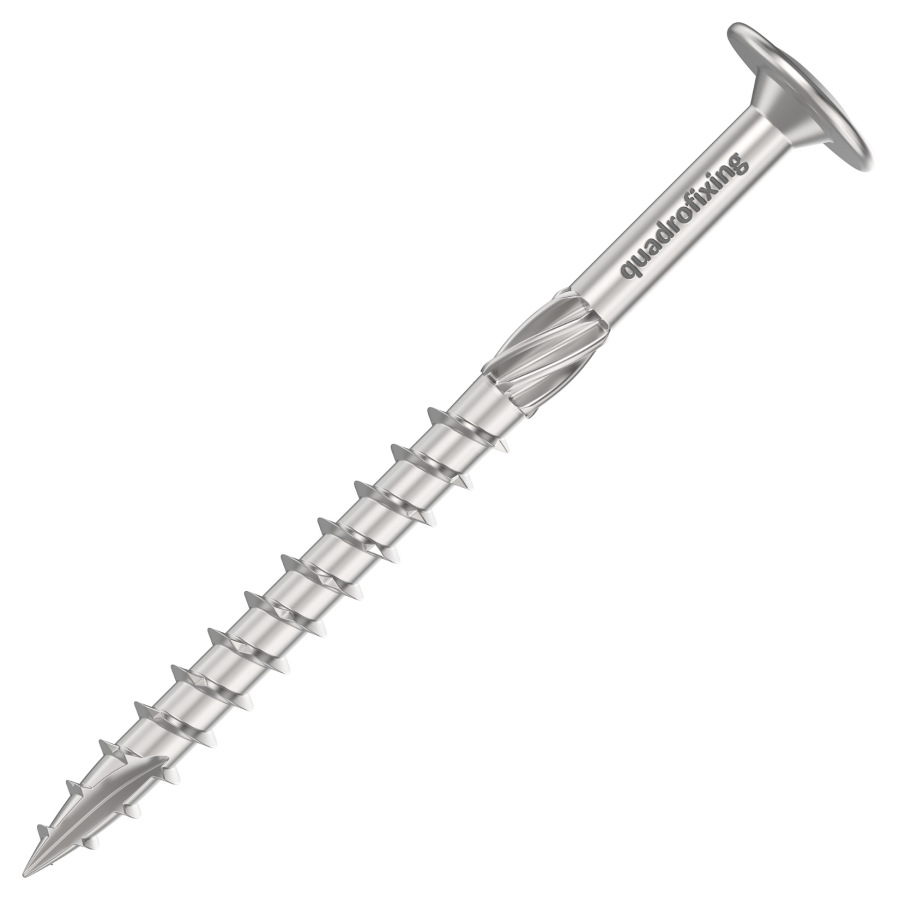

Construction stainless steel (A2) screws 8.0 mm, flange head

15% OFF PREMIUM BEST PRICE INOX A2

PGB Europe – producer of fasteners for decking and cladding

Size and packaging:
8x40 mm (50+bit)64
8x50 mm (50+bit)52
8x60 mm (50+bit)65
8x80 mm (50+bit)30
8x100 mm (50+bit)39
8x120 mm (50+bit)20
8x140 mm (50+bit)21
8x160 mm (50+bit)15
8x180 mm (50+bit)16
8x200 mm (50+bit)15
8x220 mm (50+bit)7
8x240 mm (50+bit)6
8x260 mm (50+bit)6
8x280 mm (50+bit)15
8x300 mm (50+bit)13
Producer: PGB EUROPE
Warranty: 24 months
Code: PFETTGA
EAN: 5410439342124
Availability: in stock 384 Pkg.
€ 13.33 excl. VAT
€ 16.40 Pkg.
List price € 19.29 Discount 15 %
Watchdog Add to wishlist Share

Description Need advice?

Construction stainless steel screw 8.0 mm (flange head)

Stainless steel structural screws Ø 8.0 mm with flange head are designed for strong and secure connections of wooden components in both exterior and interior applications. The wide flange head ensures excellent clamping force and an even, reliable hold of the material. Made from high-quality A2 stainless steel, these screws provide outstanding resistance to corrosion, moisture, and weather conditions. The screws are wax-coated for smooth driving and are CE certified.

Material: stainless steel A2

Application:

  • fastening of wooden materials
  • universal screw for timber structures, commonly used in highly loaded joints



Key features of the screw:

  • self-drilling tip for fast and easy screw insertion

  • milling ribs above the thread to remove chips and speed up installation

  • TORX 40 drive – secure engagement with no cam-out during driving

  • stainless steel construction for excellent corrosion resistance

  • gives the timber structure a premium appearance



Professional screws with CE certification



Stainless steel construction screw A2, flange head - dimensions



head diameter (dt):   18 mm d2:   5.7 mm T:   TORX 40 screw diameter (d):   8.00 mm



Packaging: 50 pcs + Torx 40 driving bit




Dimensions (mm) Head diameter  (dt mm) Thread length (l1 mm) Torx (T)
8x40  18 40/celozávit TX40
8x50  18 30 TX40
8x60 18 36 TX40
8x80  18 48 TX40
8x100 18 60 TX40
8x120 18 75 TX40
8x140 18 80 TX40
8x160 18 90 TX40
8x180 18 100 TX40
8x200 18 100 TX40
8x220 18   TX40
8x240 18   TX40
8x260 18   TX40
8x280 18   TX40
8x300 18   TX40



Strength parameters according to the manufacturer’s technical datasheet / CE certificate



Feature   Value
Characteristic bending moment (My,k) Nmm 20 040
Characteristic withdrawal parameter (fax,k) N/mm² 22,3
Timber density (ρk) kg/m³ 450
Characteristic head pull-through parameter (fhead,k) N/mm² 14,3
Timber density (ρk) kg/m³ 450
Characteristic tensile capacity (ftens,k) kN 13,80
Characteristic torsional strength (ftor,k) Nm 19,64
Characteristic torsional resistance (Rtor,k) Nm 7,39
Characteristic torsional ratio (ρk 450 kg/m³) – 4,6 / 2,7
