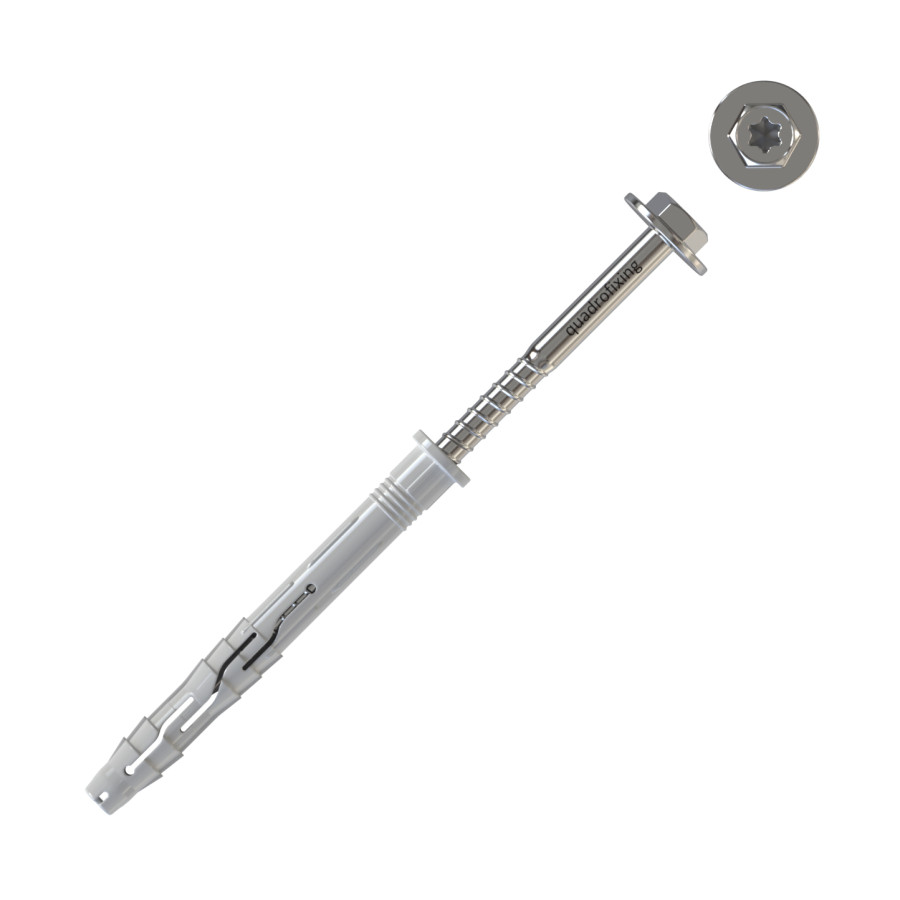

Frame dowel Ø 8 mm - screw with hexagonal head and washer, Torx 30

Dimension and packaging:

	8x100 mm (100)	11
	8x120 mm (50)	22
	8x140 mm (50)	6

Producer: PGB EUROPE

Warranty: 24 months

Code: FDCH10ZN

EAN: 5902134244679

Availability: in stock 39 Pkg.

€ 15.00 excl. VAT

€ 18.45 Pkg.

Watchdog Add to wishlist

Description Need advice?

Frame dowel, hexagon with washer - TORX

Material: dowel nylon PA6, screw white zinc plated (Cr 3+)

Drive: SW13 in combination with TORX 30

Application:

Universal dowel with ETA certificate for concrete and masonry
Optimal for anchoring the aluminium grid of ventilated facades
for fixing gates, doors, windows
suitable for metal structures

Suitable for:

Brick, perforated brick, aerated concrete, concrete

Professional frame dowel with CE/ETA certification.

Dimension of dowel in mm	drilled hole (d0) in mm	screw diameter (ds) in mm	effective depth (hef) in mm	anchor height mat. (tfix) in mm	length (l) in mm	drilled depth drilled hole depth (td) min. in mm	screw length (ls) in mm
8x80	8	5,5	70	10	80	90	87
8x100	8	5,5	70	30	100	110	107
8x120	8	5,5	70	50	120	130	127
8x140	8	5,5	70	70	140	150	147
